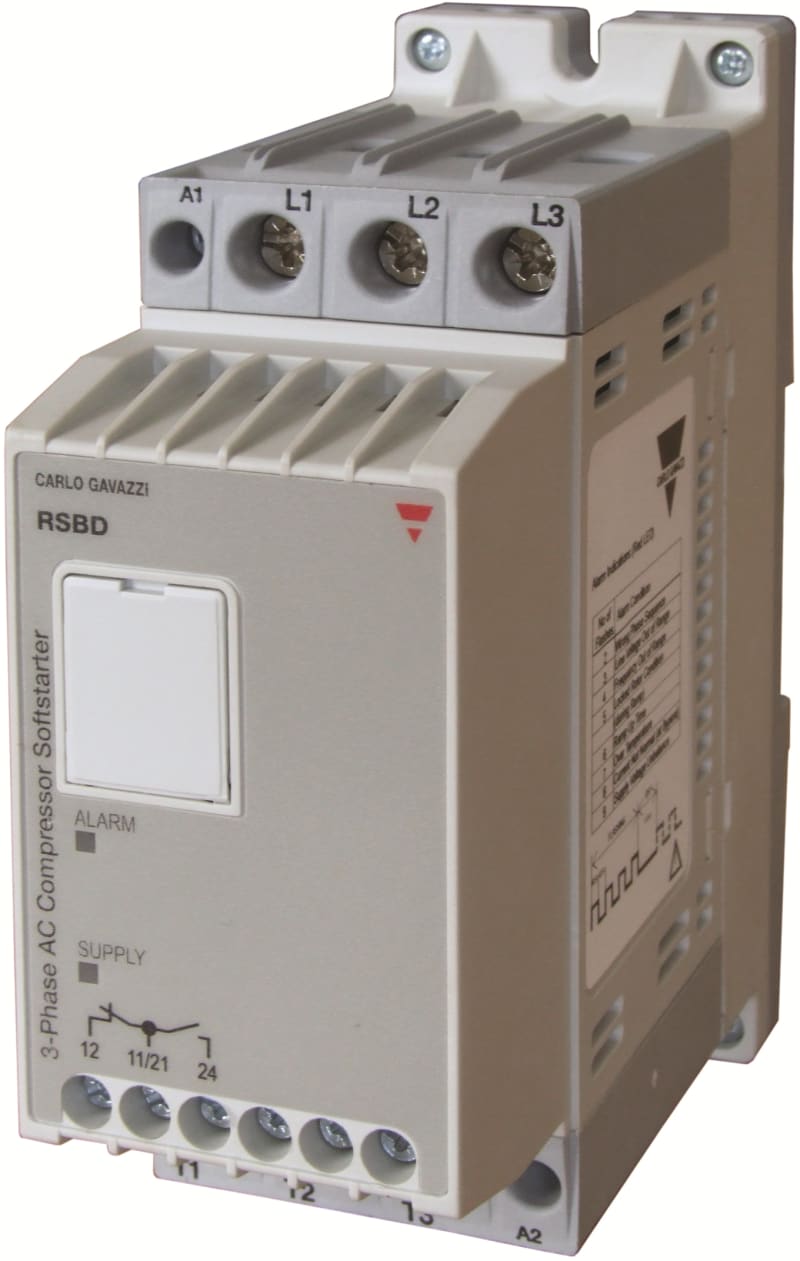

Soft starter 3F 230-400VAC/16A
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RSBD4016FV61HP Manufacturer description: 3 phase soft starter for scroll compressors, Operating voltage (Ue): 220 - 400 Vac, Rated current (Ie): 16 Aac, Control voltage (Uc): 24 Vac/dc, DIN rail mount, Supply voltage (Us): Internal, 2-phase control. RSBD4016FV61HP Soft starter for compressors.
Technical Specifications
- Manufacturer part number (MPN)
- RSBD4016FV61HP
- EAN / GTIN
- 5350035424346
- Sales unit
- pcs
- Rated operation current Ie at 40C Tu
- 16 A
- Rated operating voltage Ue
- 187 V ... 440 V
- Rated power three-phase motor, inline, at 230 V
- 4 kW
- Rated power three-phase motor, inline, at 400 V
- 7.5 kW
- Rated control supply voltage Us at AC 50HZ
- 21.6 V ... 26.4 V
- Rated control supply voltage Us at DC
- 21.6 V ... 26.4 V
- Internal bypass
- Yes
- Product Width
- 45 mm
- Product Height
- 125 mm
- Product Depth
- 110 mm
- E-number (NO)
- 4165243
- Function
- Single direction
- Degree of protection (IP)
- IP20
- Rated surrounding temperature without derating
- 40 °C
- Voltage type for actuating
- AC/DC
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5350035424346
- SAP 1200067723
- Code 81908913
Product Documentation
