IND Transmitter M12 PNP NO Shielded 2M Cable
Pricing
Request a quote
We reply within 24 hours
Product Description

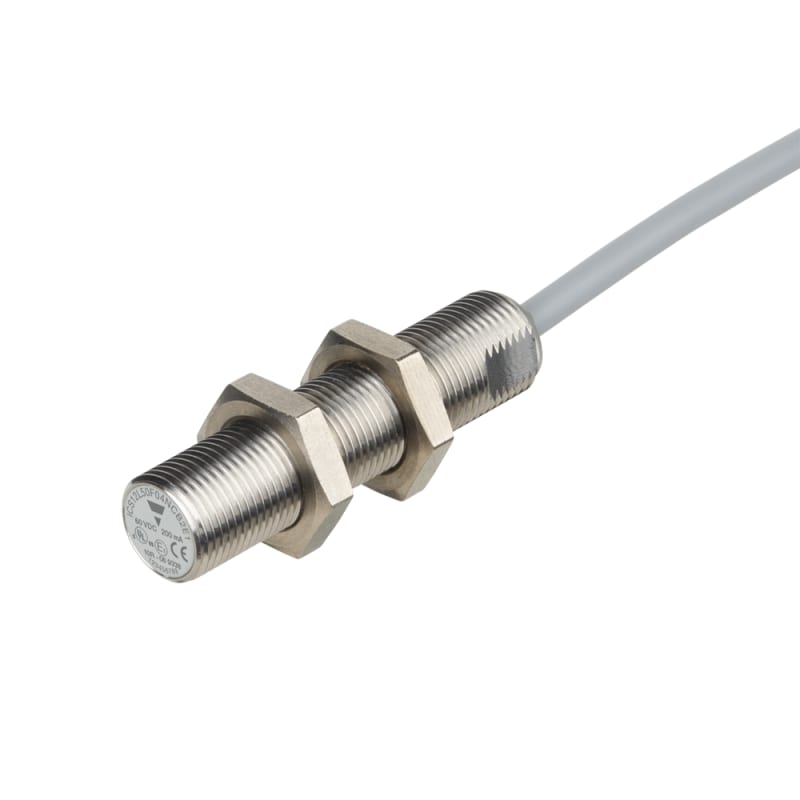

Carlo Gavazzi 4316484 Ind transmitter M12 version stainless. PNP NO output. Shielded 4mm sensing distance. 2m PUR cable.
Technical Specifications
- Manufacturer part number (MPN)
- 4316484
- HS code
- 8544.42
- Sales unit
- pcs
- Output type
- PNP
- Contact configuration
- NO
- Connector
- M12
- Length of sensor
- 52 mm
- Diameter sensor
- 12 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 4 mm
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 1300 Hz
- Housing material
- Metal
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8544.42
Cross References
- 5709870401379
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Photoelectric Sensor IO link BGS 200mm cable IP69K (PD30ETBR20BPA2IO)
Carlo Gavazzi
3-Phase nettvakt over-/underspg. 208-240V (DPB01CM23)
Carlo Gavazzi
Carlo Gavazzi HF Retaining Bracket for ZPD12A Socket
Carlo Gavazzi
SSR 230VAC/75A 24-265VAC
RM1A23A75
Carlo Gavazzi

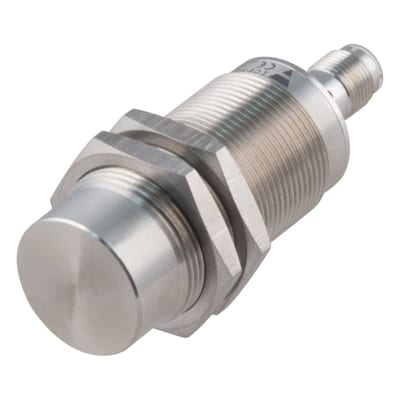

Inductive Transmitter ICF30 M. Pluggable IO-LINK (4347272)
Carlo Gavazzi

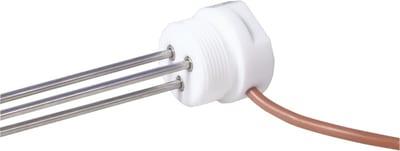

Carlo Gavazzi VTI2 Conductive Level Probe with Two 1 m Electrodes
