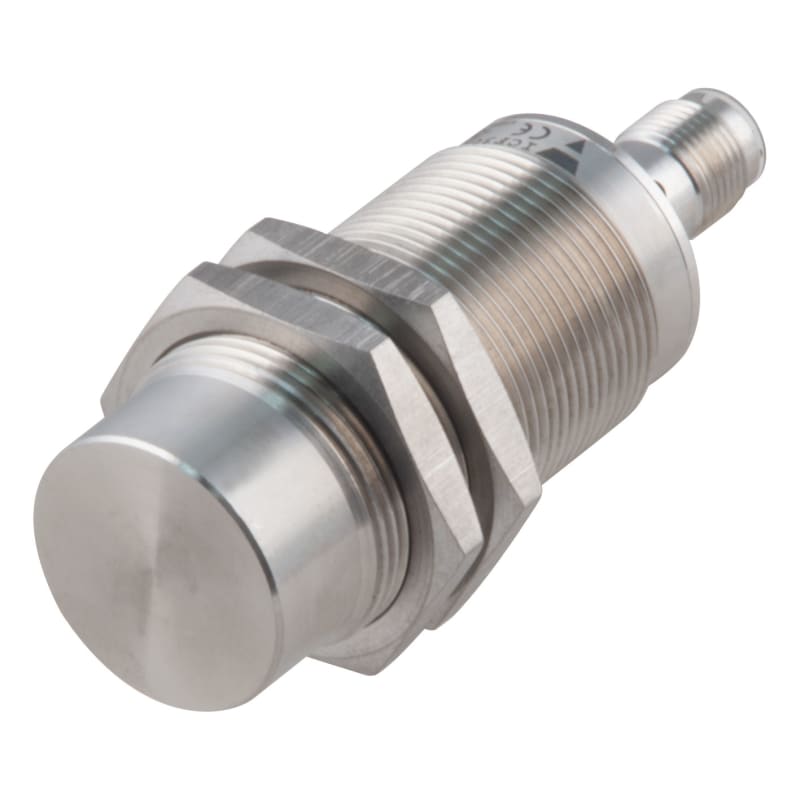

Inductive Transmitter ICF30 M. Pluggable IO-LINK (4347272)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi 4347272 In/O-link inductive transmitter helkapslet in stainless steel. M30 in unshielded version. With plug connection.
Technical Specifications
- Manufacturer part number (MPN)
- 4347272
- Sales unit
- pcs
- El-nummer (NO)
- 4347272
- ETIM class
- SC002714
- Length of sensor
- 74.2 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 22 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 150 Hz
- Housing material
- Metal
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 9030.90
Cross References
- 5709870405728
- El-nr 4347272
Product Documentation
