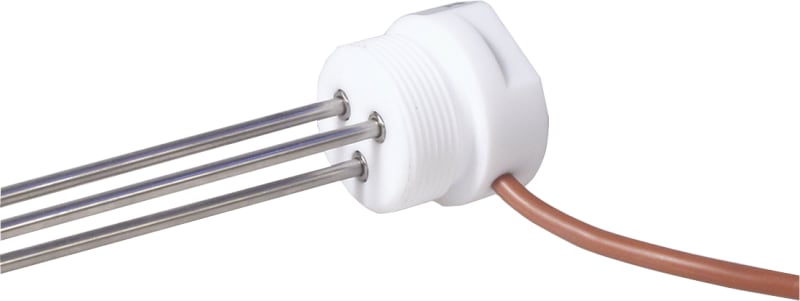

Carlo Gavazzi VTI2 Conductive Level Probe with Two 1 m Electrodes
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi VTI2 is a conductive level probe fitted with two 1 m insulated stainless-steel AISI 316 electrodes of 5 mm diameter housed in PTFE. It connects via a 1 m silicone cable and mounts by a 1.5 inch BSPP-G pipe thread, with degree of protection IP67. Measuring range 0-1 m; maximum operating pressure 4 bar at 20 degrees C; medium temperature 0-145 degrees C. External electronics are required.
Technical Specifications
- Manufacturer part number (MPN)
- VTI2
- EAN / GTIN
- 5709870006833
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Material electrode
- Other
- Type of electric connection
- Cable
- Sensing principle
- Conductive
- E-number (NO)
- 4351207
- E-number (SE)
- 3864414
- Measuring method
- Guide
- Housing material
- Plastic
- Material electrode bar
- Stainless steel
- Sensor insert length
- 1000 mm
- Measuring range
- 0–1 m
- Readable
- No
- With display
- No
- Max. operating pressure at 20 °C
- 4 bar
- Max. medium temperature (continuous)
- 145 °C
- Min. medium temperature (continuous)
- 0 °C
- Degree of protection (IP)
- IP67
- Explosion-proof
- No
- Cable length
- 1 m
- External electronics required
- Yes
- Connection
- External thread cylindrical BSPP-G (ISO 228-1)
- Height
- 1000 mm
- Medium temperature (continuous)
- 0–145 °C
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870006833
- SAP 1000140331
- Code 8173853
