Product Description
Valve Type 6013 is a direct-acting plunger valve. The stopper and the core guide tube are welded together to increase pressure resistance and leak-tightness. A variety of seal material combinations are available to suit different applications. A Bürkert-specific flange variant (SFB) enables the space-saving arrangement of valves on a multiple manifold.Kick and drop coils are available to reduce electrical power consumption during operation.
Technical Specifications
- Seal
- FKM, PTFE/Graphite (EPDM on request)
- Body
- Brass, stainless steel 1.4305/303
- Orifice
- DN 2.0…DN 6.0
- Thermal insulation class of
- Polyamide coil class B
- Duty cycle/single valve with
- 100 % continuous operation
- Standard variant
- 24 V DC, 24 V 50 Hz, 24 V 60 Hz, 120 V 50 Hz, 230 V 50 Hz, 240 V 60 Hz
- Analytical variant
- 24 V DC, 230 V 50 Hz (other voltages on request)
- Voltage tolerance
- ± 10 %
- Viscosity
- Max. 21 mm²/s
- Electrical connection
- Plug contacts according to DIN EN 175 301 - 803 form A for cable plug Type 2518 .
- Degree of protection
- IP65 with cable plug
- Ambient temperature
- Max. + 55 °C (higher temperatures on request)
- Operating medium
- Neutral medium, which does not attack the body and seal materials
- Installation instructions
- No oils, fats or silicone to be used during installation.
- Operating pressure
- Max. 0…5 bar
Standards & Compliance
- HS Code
- 8481.80
Cross References
- Burkert 6013
- Buerkert 6013
- Bürkert 6013
- Type 6013
- Burkert Type 6013
Product Documentation
More from Bürkert
Bürkert
Bürkert Direct-acting 2-Way Proportional Valve Type 6020
Bürkert
Bürkert 2/2 or 3/2 Way Pneumatic-Rocker-Solenoid Valve
Type 6106
Bürkert
Bürkert 3/2-WAY Flipper Solenoid Valve, Direct-acting
Type 6144
Bürkert
Bürkert 3/2-WAY Pneumatic Cartridge Solenoid Valve
Type 6164
Bürkert
Bürkert Diaphragm Valve, 2/2-WAY, Servo-assisted Type 6212
Bürkert
Bürkert Servo-assisted 2-Way High-flow Proportional Valve
Type 6223
Bürkert
Bürkert Servo-assisted 2/2-WAY Piston Valve Type 6240
Bürkert

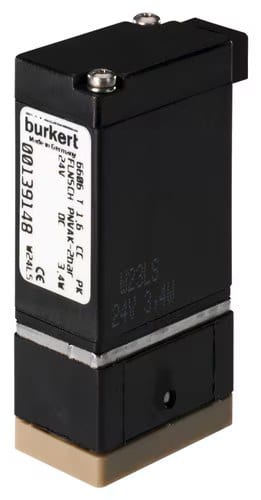

Bürkert 2/2 or 3/2 Way Rocker-Solenoid Valve with Separating Diaphragm
