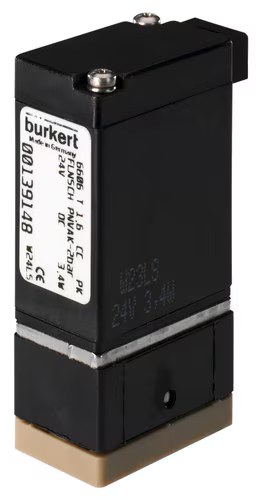

Bürkert 2/2 or 3/2 Way Rocker-Solenoid Valve with Separating Diaphragm

The direct-acting rocker solenoid valves with isolating diaphragm of Type 6606 (2/2- and 3/2–way) are high quality valves for analytical technology. They have minimal dead volume and internal volume with few crevices making them easy to flush out. The fluid only comes into contact with the body material and the FFKM seal. The heat transfer to the medium is minimal. The fluid path is isolated from the coil by a stainless steel plate. The valves are ideal for dosing, filling, mixing and distributing of small quantities of fluid for medical, analytical and laboratory applications.

Seal

FFKM

Fluidic housing

PEEK (PVDF on request)

Internal volume

Sub-base: starting at 44 µl

Orifice

DN 0.8…DN 1.6

Switching time

Open: approx. 25 ms (pressure build-up 0…10 %)

Operating voltage

12/24 V DC (other voltages on request)

Duty cycle

100 % continuous operation

Nominal power

3.4 W

Voltage tolerance

± 10 %

Medium temperature

Max. 0…+ 50 °C

Viscosity

Max. 21 mm²/s

Electrical connection

Two FEP-leads 0.2 mm² (AWG24), length 500 mm

Port connection

Bürkert sub-base (16 × 27 mm)

Degree of protection

IP65 with flying leads and cable plug Type 2516 

Foods and beverages/Hygiene

FDA (on request only with seal material EPDM)

HS Code

8481.80
