Product Description

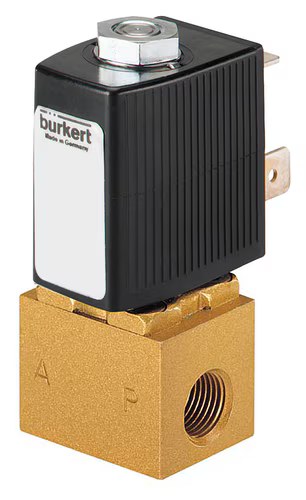

Valve 6011 is a direct-acting plunger valve. The stopper and core guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Push-in fittings can be selected for flexible hose connection. In combination with a cable plug in accordance with industry standard Form B or DIN EN 175301-803 Form C, the valves satisfy protection class IP65.
Technical Specifications
- Seal
- FKM
- Body
- Standard version: Brass, polyamide (PA), stainless steel 1.4305
- Weight
- Ca. 125 g
- Duty cycle/single valve
- when mounted as 100 % continuous rating
- Standard version
- 24 V DC, 24 V/50 Hz, 110/230 V/50 Hz
- Analytical version
- 24 V DC, 230 V/50 Hz
- Voltage tolerance
- ± 10 %
- Viscosity
- Max. 21 mm²/s
- Medium temperature
- - 10…+ 100 °C
- Degree of protection
- IP65 with cable plug
- Electrical connection
- To DIN EN 175 301 - 803 Form C for cable plug Type 2516
- Ambient temperature (max.)
- + 55 °C
- Installation instructions
- No oil, grease or silicones to be used as installation aids
Standards & Compliance
- HS Code
- 8481.80
Cross References
- Burkert 6011
- Buerkert 6011
- Bürkert 6011
- Type 6011
- Burkert Type 6011
Product Documentation
