Abiko KRT 120-10 Copper Tube Cable Lug 120 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRT 120-10 — compression (crimp) copper tube cable lug for terminating a 120 mm² conductor onto an M10 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue)
- Conductor cross-section
- 120 mm²
- Stud / bolt hole
- M10
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRT
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRT 120-10
- EAN / GTIN
- 7070920014060
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920014060
- SAP 1000018383
- Code 8490143
Product Documentation
More from Abiko
Abiko

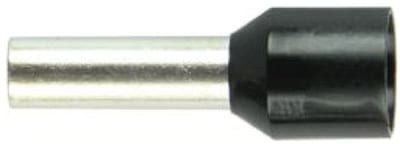

Abiko Insulated Wire-End Ferrule 6 mm² Black long barrel
6,0 SORT LANG
Abiko
PLASTKL.19-22MM with PLUG/Nail
PCN 19/22
Abiko
Abiko A 0503 FLF 8 Fully-Insulated Flat Receptacle, 2.8 × 0.8 mm
Abiko
Abiko A 1510 R Insulated Ring Terminal 1.5 mm² M10 (Red)
Abiko
Abiko Insulated Wire-End Ferrule 4 mm² Grey
4,0 GR?
Abiko
Abiko A 2565 G Insulated Fork Terminal 2.5 mm² M6 (Blue)
Abiko
Abiko KRT 185-10 Copper Tube Cable Lug 185 mm² M10
Abiko
Abiko Insulated Wire-End Ferrule 1 mm² Yellow type C
1,0 GUL C
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRT 120-10?
- KRT 120-10 can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is KRT 120-10.
- What is the HS code for KRT 120-10?
- The customs tariff (HS) code for KRT 120-10 is 8536.90.
- Who manufactures KRT 120-10?
- KRT 120-10 is a Abiko product in the Electrical Components range.
- Is a datasheet available for KRT 120-10?
- Yes — the KRT 120-10 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRT 120-10?
- The minimum order quantity is 1.
- Is KRT 120-10 available?
- Yes — KRT 120-10 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
