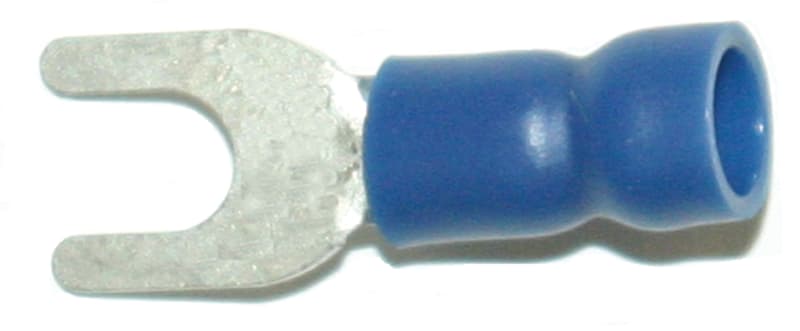

Abiko A 2565 G Insulated Fork Terminal 2.5 mm² M6 (Blue)

Abiko A 2565 G — pre-insulated compression (crimp) copper fork (spade) terminal for terminating a 2.5 mm² conductor onto an M6 stud. The barrel is tin-plated electrolytic copper with a brazed neck. The open fork (spade) tongue slides under a partly-loosened screw or nut without full removal. The insulation is halogen-free nylon (PA) with an easy-entry conductor funnel and is colour-coded blue for the 1.5-2.5 mm² conductor range. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight connection. Operating temperature -20 °C to +105 °C; insulation UL-approved; terminal to DIN 46237. Applied in control panels, switchboards, motor terminations and marine and offshore installations.

Type

Pre-insulated fork (spade) terminal (crimp) Conductor cross-section: 2.5 mm² Conductor range (colour code): 1.5-2.5 mm² (Blue) Stud / bolt hole: M6 Conductor class: Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper Barrel material: Electrolytic copper, tin-plated, brazed neck Insulation: Nylon (PA), halogen-free, easy-entry Operating temperature: -20 °C to +105 °C Approvals: Insulation UL-approved Standard: DIN 46237 Series: Abiko A (OEM prefix KA) Manufacturer part number (MPN): A 2565 G EAN / GTIN: 7070920010864 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90

HS Code

8536.90

• EAN 7070920010864
• SAP 1000067930
• Code 8753959
