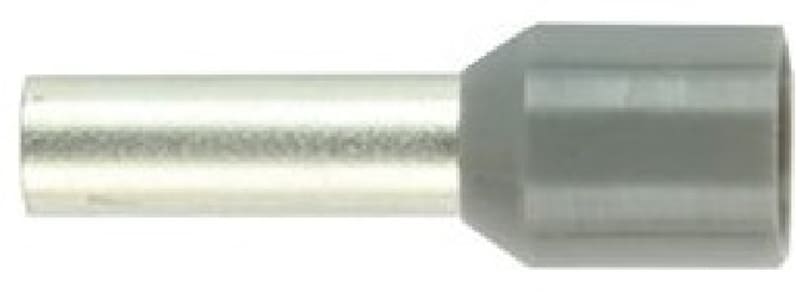

Abiko Insulated Wire-End Ferrule 4 mm² Grey
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 4,0 GR? — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 4 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded grey by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule
- Conductor cross-section
- 4 mm²
- Insulation
- Polypropylene (PP), colour-coded by size (DIN 46228-4)
- Insulation colour
- Grey
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 4,0 GR?
- EAN / GTIN
- 7070920009356
- Sales unit
- pcs
- Package quantity
- 500 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009356
- SAP 1000062058
- Code 8549043
Product Documentation
More from Abiko
Abiko
Abiko A 2565 G Insulated Fork Terminal 2.5 mm² M6 (Blue)
Abiko
Abiko KRT 185-10 Copper Tube Cable Lug 185 mm² M10
Abiko
Abiko Insulated Wire-End Ferrule 1 mm² Yellow type C
1,0 GUL C
Abiko
Abiko KRT 16-6 Copper Tube Cable Lug 16 mm² M6
Abiko
Abiko KRT 35-12 Copper Tube Cable Lug 35 mm² M12
Abiko

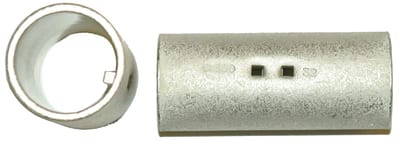

Abiko KSF 50 Copper Compression Butt Splice 50 mm² (Uninsulated)
KSF 50
Abiko

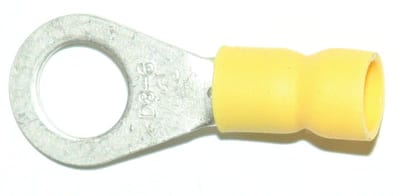

RING TERMINAL, ISOL 6 mm² M13
A 4613 R
Abiko

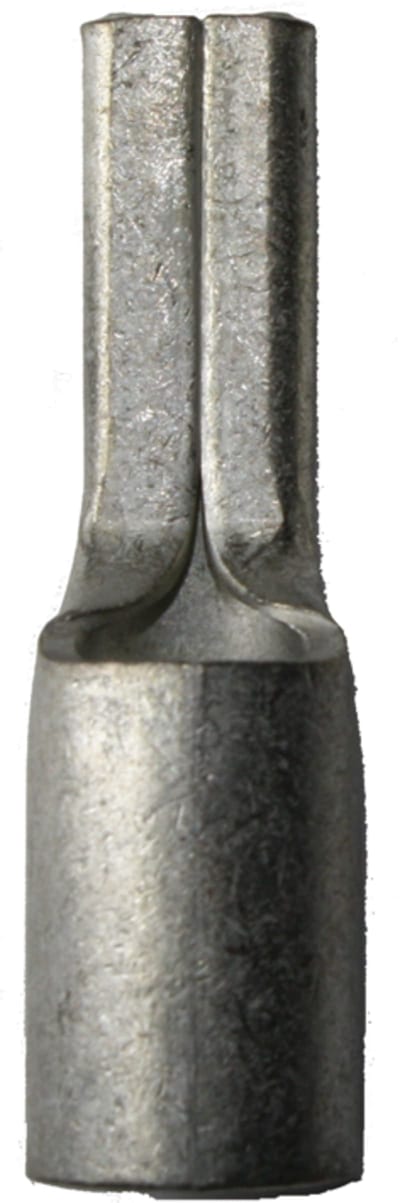

Abiko B 70 SR Uninsulated Pin Cable Lug 70 mm²
