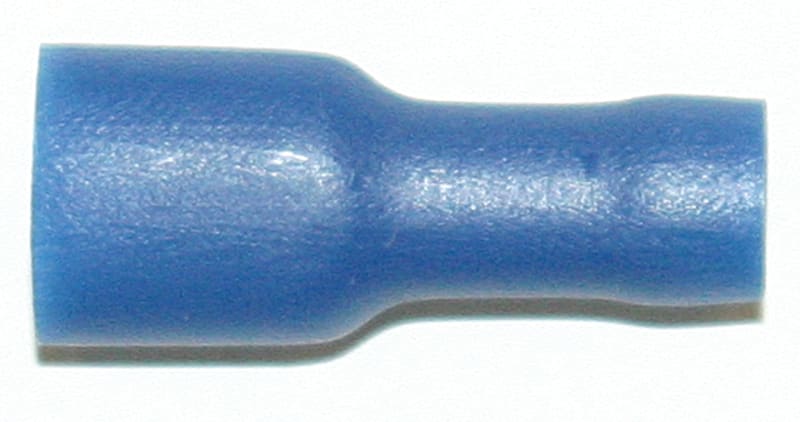

Abiko A 2507 FLF Fully-Insulated Flat Receptacle 1.5–2.5 mm², 6.3 × 0.8 mm (Blue)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 2507 FLF — fully-insulated flat receptacle (female push-on) for a 6.3 × 0.8 mm flat push-on connection terminating a 1.5–2.5 mm² conductor. The tin-plated brass contact carries a tin-plated copper crimp barrel and a full-body halogen-free Nylon (PA) insulation sleeve, colour-coded blue for the 1.5–2.5 mm² conductor range. Operating temperature -20 °C to +105 °C; insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies. Applied in control panels, switchboards, appliance wiring and marine installations.
Technical Specifications
- Type
- Fully-Insulated flat receptacle (female push-on) per DIN 46247
- Conductor cross-section
- 1.5–2.5 mm²
- Insulation colour code
- Blue
- Tab dimension
- 6.3 × 0.8 mm
- Material
- Brass contact body, tin-plated; copper crimp barrel, tin-plated
- Insulation
- Nylon (PA), halogen-free, easy-entry (sleeve covers full body)
- Conductor
- Stranded / flexible copper (IEC 60228)
- Operating temperature
- -20 °C to +105 °C
- Approvals
- Insulation UL-approved
- Standard
- DIN 46247
- Series
- Abiko A (pre-insulated)
- Manufacturer part number (MPN)
- A 2507 FLF
- EAN / GTIN
- 7070920011410
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920011410
- SAP 1000034643
- Code 8757217
Product Documentation
More from Abiko
Abiko
PLASTKL.16-19MM with PLUG/Nail
PCN 16/19
Abiko
Abiko Insulated Wire-End Ferrule 4 mm² Grey long barrel
4,0 GR? LANG
Abiko
Abiko KRT 16-8 Copper Tube Cable Lug 16 mm² M8
Abiko
Abiko Insulated Wire-End Ferrule 6 mm² Black Gigastor
6,0 sort GST
Abiko
Abiko A 0824 SC Heat-Shrink Insulated Butt Splice 0.75 mm²
Abiko
Abiko KRT 25-10 Copper Tube Cable Lug 25 mm² M10
Abiko
Abiko Insulated Twin Wire-End Ferrule 2×4 mm²
4,0 TVILL
Abiko
Abiko Insulated Wire-End Ferrule 0.75 mm² White long barrel
0,75 HVIT LANG
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A 2507 FLF?
- A 2507 FLF can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is A 2507 FLF.
- What is the HS code for A 2507 FLF?
- The customs tariff (HS) code for A 2507 FLF is 8536.90.
- Who manufactures A 2507 FLF?
- A 2507 FLF is a Abiko product in the Electrical Components range.
- Is a datasheet available for A 2507 FLF?
- Yes — the A 2507 FLF datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A 2507 FLF?
- The minimum order quantity is 1.
- Is A 2507 FLF available?
- Yes — A 2507 FLF is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
