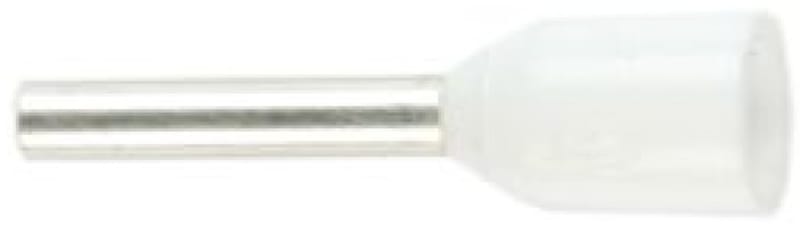

Abiko Insulated Wire-End Ferrule 0.75 mm² White long barrel
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 0,75 HVIT LANG — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 0.75 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded white by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 0.75 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: White Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 0,75 HVIT LANG EAN / GTIN: 7070920009271 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009271
- SAP 1000035564
- Code 8513842
Product Documentation
