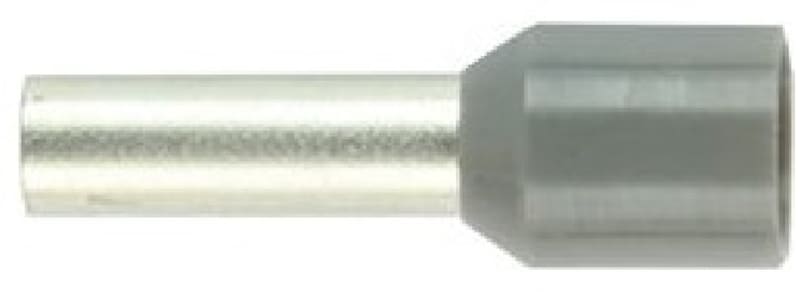

Abiko Insulated Wire-End Ferrule 4 mm² Grey 12 mm barrel
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 4,0 GRÅ HL — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 4 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded grey by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Barrel length 12 mm. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 4 mm² Barrel length: 12 mm Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Grey Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 4,0 GRÅ HL EAN / GTIN: 7070920017887 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920017887
- SAP 1200072053
- Code 81922930
Product Documentation
