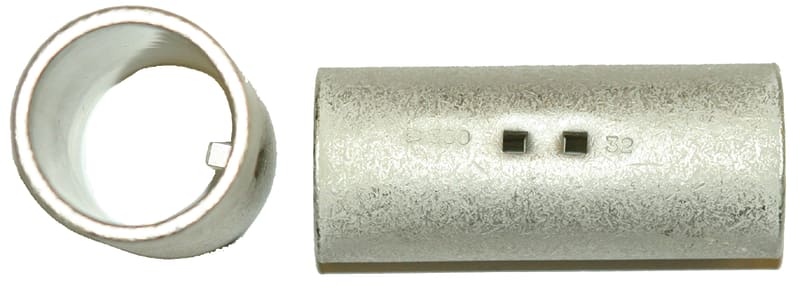

Abiko KS 2,5 Copper Compression Butt Splice 2.5 mm² (Uninsulated)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KS 2,5 Tin-plated copper compression (press) butt splice for joining two conductors of 2.5 mm² cross-section; conductor inspection hole. Crimped with the correct press tool; the inspection hole confirms full conductor insertion. Rated Max +150 °C. To IEC 61238-1 (crimp performance); IEC 60228 Cl.2/Cl.5 conductors.
Technical Specifications
- Type
- Uninsulated compression butt splice (copper conductors)
- Manufacturer part number (MPN)
- KS 2,5
- EAN / GTIN
- 7070920006874
- Conductor cross-section
- 2.5 mm²
- Material
- Tin-plated electrolytic copper
- Connection
- Crimp / compression (press tool)
- Feature
- Conductor inspection hole
- Operating temperature
- Max +150 °C
- Standard
- IEC 61238-1 (crimp performance); IEC 60228 Cl.2/Cl.5 conductors
- Approvals
- RoHS
- HS code
- 8536.90
Standards & Compliance
- Standard
- IEC 61238-1 (crimp performance); IEC 60228 Cl.2/Cl.5 conductors
- Material
- Tin-plated electrolytic copper
- Temperature Range
- Max +150 °C
- Classification / Approval
- RoHS
- HS Code
- 8536.90
Cross References
- EAN 7070920006874
- SAP 1000057195
- Code 8852476
Product Documentation
More from Abiko
Abiko
Abiko KRT 10-6 Copper Tube Cable Lug 10 mm² M6
Abiko
Abiko KRT 150-12 Copper Tube Cable Lug 150 mm² M12
Abiko
Abiko A 2507 H Insulated Flat Tab 1.5–2.5 mm², 6.3 × 0.8 mm (Blue)
Abiko

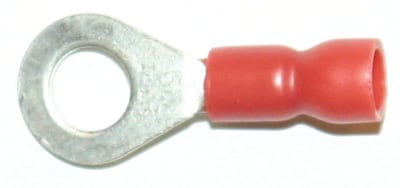

Abiko A 1585 R Insulated Ring Terminal 1.5 mm² M8 (Red)
Abiko

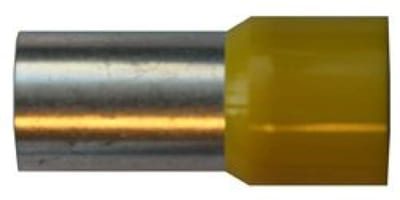

Abiko Insulated Wire-End Ferrule 70 mm² Yellow
