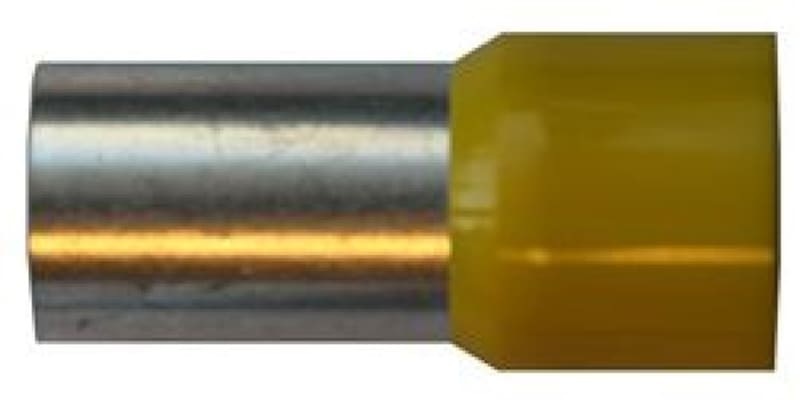

Abiko Insulated Wire-End Ferrule 70 mm² Yellow
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 70 GUL — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 70 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded yellow by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 70 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Yellow Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 70 GUL EAN / GTIN: 7070920009745 Sales unit: pcs Package quantity: 50 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009745
- SAP 1000005527
- Code 8472601
Product Documentation
