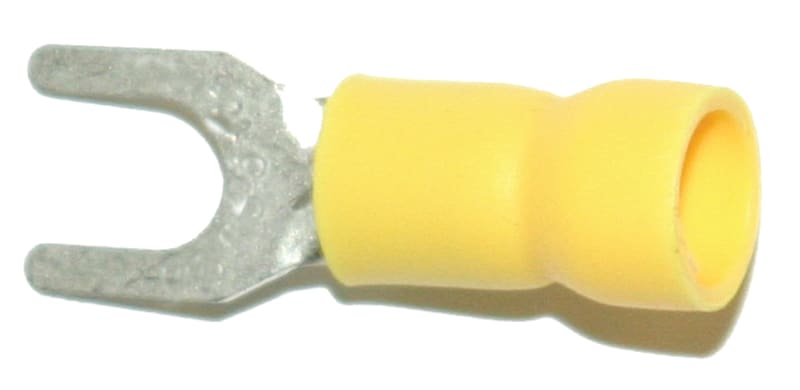

Abiko A 4653 G Insulated Fork Terminal 6 mm² M5 (Yellow)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 4653 G — pre-insulated compression (crimp) copper fork (spade) terminal for terminating a 6 mm² conductor onto an M5 stud. The barrel is tin-plated electrolytic copper with a brazed neck. The open fork (spade) tongue slides under a partly-loosened screw or nut without full removal. The insulation is halogen-free nylon (PA) with an easy-entry conductor funnel and is colour-coded yellow for the 4-6 mm² conductor range. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight connection. Operating temperature -20 °C to +105 °C; insulation UL-approved; terminal to DIN 46237. Applied in control panels, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Pre-insulated fork (spade) terminal (crimp) Conductor cross-section: 6 mm² Conductor range (colour code): 4-6 mm² (Yellow) Stud / bolt hole: M5 Conductor class: Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper Barrel material: Electrolytic copper, tin-plated, brazed neck Insulation: Nylon (PA), halogen-free, easy-entry Operating temperature: -20 °C to +105 °C Approvals: Insulation UL-approved Standard: DIN 46237 Series: Abiko A (OEM prefix KA) Manufacturer part number (MPN): A 4653 G EAN / GTIN: 7070920010918 Sales unit: pcs Package quantity: 50 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920010918
- SAP 1000057051
- Code 8541742
Product Documentation
More from Abiko
Abiko
Abiko A 4652 SK Insulated Butt Splice Connector 6 mm² Yellow
Abiko
Abiko KRT 50-8 Copper Tube Cable Lug 50 mm² M8
Abiko
Abiko A 2510 R Insulated Ring Terminal 2.5 mm² M10 (Blue)
Abiko
Abiko A 1525 SC Heat-Shrink Insulated Butt Splice 1.5 mm²
Abiko
Abiko KS 2,5 Copper Compression Butt Splice 2.5 mm² (Uninsulated)
Abiko
Abiko KRT 10-6 Copper Tube Cable Lug 10 mm² M6
Abiko
Abiko KRT 150-12 Copper Tube Cable Lug 150 mm² M12
Abiko
Abiko A 2507 H Insulated Flat Tab 1.5–2.5 mm², 6.3 × 0.8 mm (Blue)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A 4653 G?
- A 4653 G can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is A 4653 G.
- What is the HS code for A 4653 G?
- The customs tariff (HS) code for A 4653 G is 8536.90.
- Who manufactures A 4653 G?
- A 4653 G is a Abiko product in the Electrical Components range.
- Is a datasheet available for A 4653 G?
- Yes — the A 4653 G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A 4653 G?
- The minimum order quantity is 1.
- Is A 4653 G available?
- Yes — A 4653 G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
