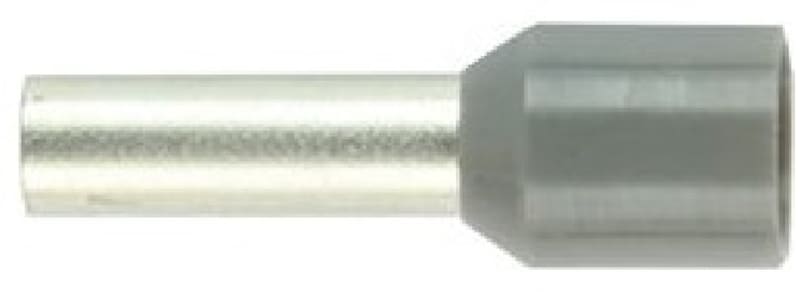

Abiko Insulated Wire-End Ferrule 4 mm² Grey long barrel
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 4,0 GR? LANG — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 4 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded grey by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule
- Conductor cross-section
- 4 mm²
- Insulation
- Polypropylene (PP), colour-coded by size (DIN 46228-4)
- Insulation colour
- Grey
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 4,0 GR? LANG
- EAN / GTIN
- 7070920009363
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009363
- SAP 1000083306
- Code 8575335
Product Documentation
More from Abiko
Abiko
Abiko KRT 16-8 Copper Tube Cable Lug 16 mm² M8
Abiko
Abiko Insulated Wire-End Ferrule 6 mm² Black Gigastor
6,0 sort GST
Abiko
Abiko A 0824 SC Heat-Shrink Insulated Butt Splice 0.75 mm²
Abiko
Abiko KRT 25-10 Copper Tube Cable Lug 25 mm² M10
Abiko
Abiko Insulated Twin Wire-End Ferrule 2×4 mm²
4,0 TVILL
Abiko
Abiko Insulated Wire-End Ferrule 0.75 mm² White long barrel
0,75 HVIT LANG
Abiko
Abiko KS 4 Copper Compression Butt Splice 4 mm² (Uninsulated)
KS 4
Abiko
Abiko KRT 70-10 Copper Tube Cable Lug 70 mm² M10
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 4,0 GR? LANG?
- 4,0 GR? LANG can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 4,0 GR? LANG.
- What is the HS code for 4,0 GR? LANG?
- The customs tariff (HS) code for 4,0 GR? LANG is 8536.90.
- Who manufactures 4,0 GR? LANG?
- 4,0 GR? LANG is a Abiko product in the Electrical Components range.
- Is a datasheet available for 4,0 GR? LANG?
- Yes — the 4,0 GR? LANG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 4,0 GR? LANG?
- The minimum order quantity is 1.
- Is 4,0 GR? LANG available?
- Yes — 4,0 GR? LANG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
