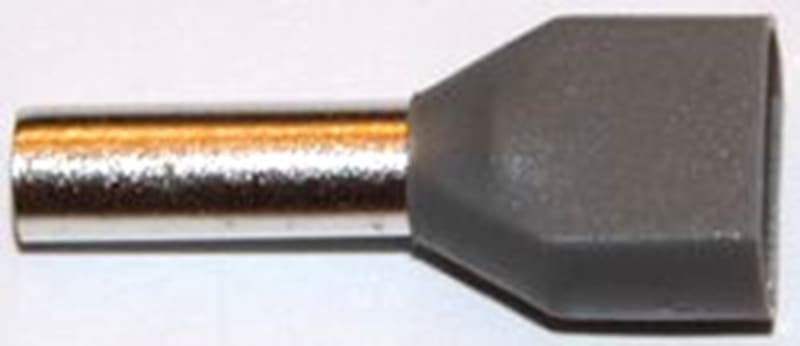

Abiko Insulated Twin Wire-End Ferrule 2×4 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 4,0 TVILL — pre-insulated wire-end ferrule (cord-end terminal) that terminates two 4 mm² fine-stranded copper conductors in a single common barrel for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Twin Wire-End Ferrule
- Conductor cross-section
- 2 × 4 mm²
- Insulation
- Polypropylene (PP), colour-coded by size (DIN 46228-4)
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 4,0 TVILL
- EAN / GTIN
- 7070920009653
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009653
- SAP 1000018160
- Code 8139108
Product Documentation
More from Abiko
Abiko
Abiko Insulated Wire-End Ferrule 0.75 mm² White long barrel
0,75 HVIT LANG
Abiko
Abiko KS 4 Copper Compression Butt Splice 4 mm² (Uninsulated)
KS 4
Abiko
Abiko KRT 70-10 Copper Tube Cable Lug 70 mm² M10
Abiko

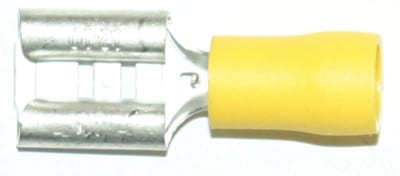

Abiko A 4607 FL Insulated Flat Receptacle 4–6 mm², 6.3 × 0.8 mm (Yellow)
Abiko

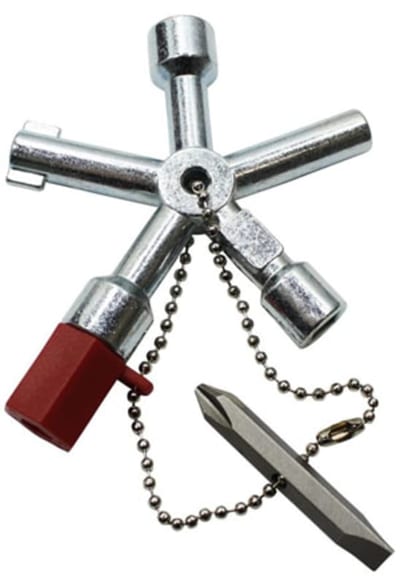

Abiko Cabinet Key Cross-Type 4-Dimension Steel
SKAP X
Abiko

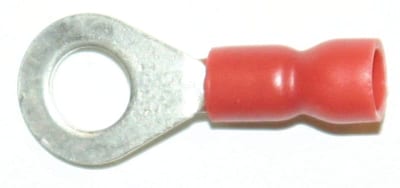

Abiko A 1565 R Insulated Ring Terminal 1.5 mm² M6 (Red)
Abiko

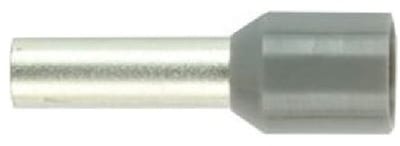

Abiko Insulated Wire-End Ferrule 4 mm² Grey 12 mm barrel
4,0 GRÅ HL
Abiko

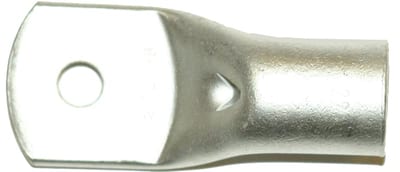

Abiko KRF 150-10 Copper Tube Cable Lug 150 mm² M10
