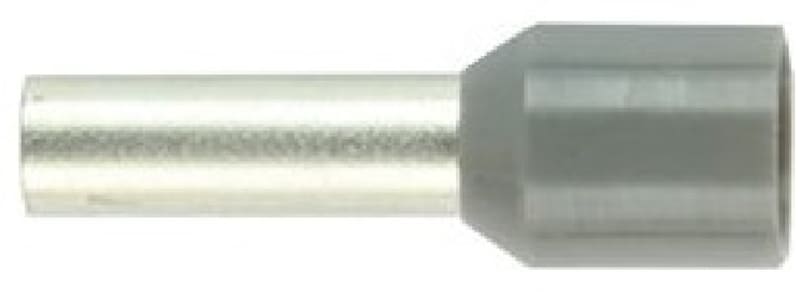

Abiko Insulated Wire-End Ferrule 4 mm² Grey type C
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 4,0 GR? C — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 4 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded grey by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule
- Conductor cross-section
- 4 mm²
- Insulation
- Polypropylene (PP), colour-coded by size (DIN 46228-4)
- Insulation colour
- Grey
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 4,0 GR? C
- EAN / GTIN
- 7070920009608
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009608
- SAP 1000057038
- Code 8858129
Product Documentation
