Abiko KRF 50-8 Copper Tube Cable Lug 50 mm² M8, 90° Angled Palm KRF 50-8 90 POW
Pricing
Request a quote
We reply within 24 hours
Product Description

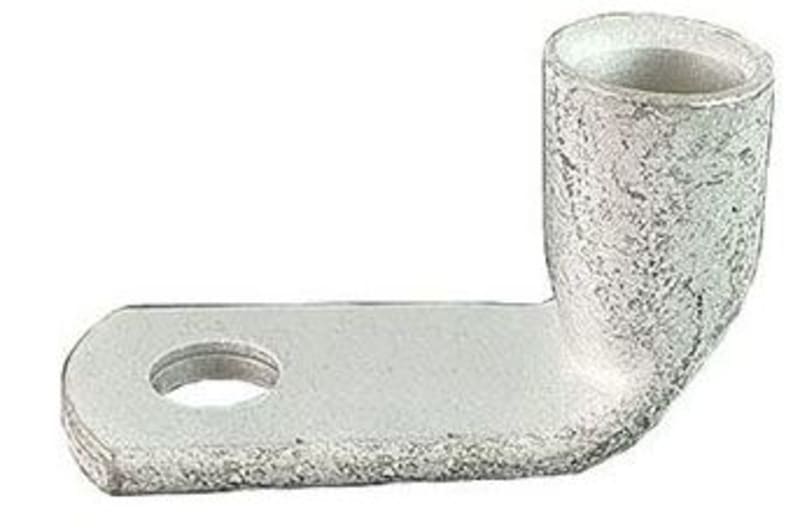

Abiko KRF 50-8 90 POW — compression (crimp) copper tube cable lug for terminating a 50 mm² conductor onto an M8 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is set at 90° to the barrel with a long tongue, for terminations that turn away from the stud. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), 90° angled palm (long tongue)
- Conductor cross-section
- 50 mm²
- Stud / bolt hole
- M8
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRF
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRF 50-8 90 POW
- Sales unit
- pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- SAP 1200729781
- Code 83861496
Product Documentation
