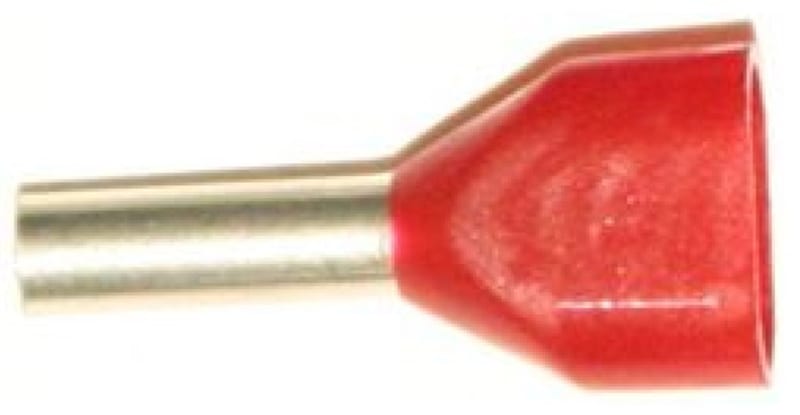

Abiko Insulated Twin Wire-End Ferrule 2×0.5 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 0,5 TVILL — pre-insulated wire-end ferrule (cord-end terminal) that terminates two 0.5 mm² fine-stranded copper conductors in a single common barrel for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Twin Wire-End Ferrule
- Conductor cross-section
- 2 × 0.5 mm²
- Insulation
- Polypropylene (PP), colour-coded by size (DIN 46228-4)
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 0,5 TVILL
- EAN / GTIN
- 7070920009691
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009691
- SAP 1000001845
- Code 8467837
Product Documentation
More from Abiko
Abiko
Abiko Wire-end ferrule assortment, insulated, 4.0–16 mm² (2017316)
Ass.store endehylser
Abiko
Abiko A 0503 FL 5 Insulated Flat Receptacle 0.5–1.5 mm², 2.8 × 0.5 mm (Red)
Abiko
Abiko Insulated Wire-End Ferrule 50 mm² Olive 30 mm barrel
50 oliven lang
Abiko
Abiko Uninsulated Wire-End Ferrule 240 mm² 32 mm barrel
240-32
Abiko
Abiko KS 6 Copper Compression Butt Splice 6 mm² (Uninsulated)
KS 6
Abiko
Abiko A 4643 R Insulated Ring Terminal 6 mm² M4 (Yellow)
Abiko
Abiko A 4630 SR Insulated Pin Cable Lug 4–6 mm² (Yellow)
Abiko
Abiko KRT 10-8 Copper Tube Cable Lug 10 mm² M8
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 0,5 TVILL?
- 0,5 TVILL can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 0,5 TVILL.
- What is the HS code for 0,5 TVILL?
- The customs tariff (HS) code for 0,5 TVILL is 8536.90.
- Who manufactures 0,5 TVILL?
- 0,5 TVILL is a Abiko product in the Electrical Components range.
- Is a datasheet available for 0,5 TVILL?
- Yes — the 0,5 TVILL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 0,5 TVILL?
- The minimum order quantity is 1.
- Is 0,5 TVILL available?
- Yes — 0,5 TVILL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
