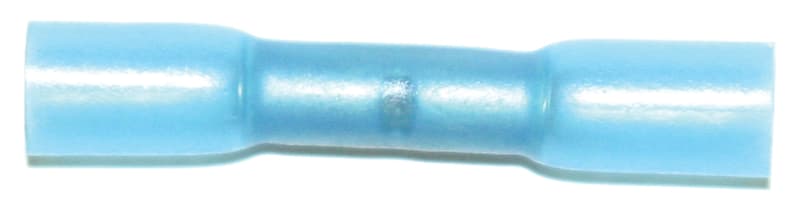

Abiko A 2527 SC Heat-Shrink Insulated Butt Splice 2.5 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 2527 SC insulated butt splice connector for joining two conductors of 2.5 mm² cross-section. Tin-plated copper barrel; adhesive-lined polyolefin heat-shrink sleeve (3:1 shrink ratio). Crimp connection inside an adhesive-lined heat-shrink sleeve for a waterproof, insulated joint. Rated -40 °C to +105 °C, to IEC 60228.
Technical Specifications
- Type
- Insulated cable butt splice (joins two conductors of equal cross-section)
- Manufacturer part number (MPN)
- A 2527 SC
- EAN / GTIN
- 7070920009912
- Conductor cross-section
- 2.5 mm²
- Material
- Tin-plated copper barrel; adhesive-lined polyolefin heat-shrink sleeve (3:1 shrink ratio)
- Insulation
- Adhesive-lined polyolefin heat-shrink, blue; min. shrink temperature 100 °C
- Sealing
- Adhesive lining gives a waterproof joint
- Connection
- Crimp (requires Abiko CLD 125 or equivalent tool)
- Voltage/current
- 600 V / 30 A
- Operating temperature
- -40 °C to +105 °C
- Standard
- IEC 60228
- Approvals
- UL, RoHS, Halogen-free, Waterproof (sealed)
- HS code
- 8536.90
Standards & Compliance
- Standard
- IEC 60228
- Material
- Tin-plated copper barrel; adhesive-lined polyolefin heat-shrink sleeve (3:1 shrink ratio)
- Temperature Range
- -40 °C to +105 °C
- Classification / Approval
- UL, RoHS, Halogen-free, Waterproof (sealed)
- HS Code
- 8536.90
Cross References
- EAN 7070920009912
- SAP 1000039859
- Code 8521021
