Abiko KRF 50-10 Copper Tube Cable Lug 50 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRF 50-10 — compression (crimp) copper tube cable lug for terminating a 50 mm² conductor onto an M10 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue)
- Conductor cross-section
- 50 mm²
- Stud / bolt hole
- M10
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRF
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRF 50-10
- EAN / GTIN
- 7070920007437
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920007437
- SAP 1000072727
- Code 8563475
Product Documentation
More from Abiko
Abiko
Abiko AKK 150-10 Aluminium-Copper Bimetallic Compression Cable Lug 150 mm² M10
Abiko
Abiko KRF 35-8 Copper Tube Cable Lug 35 mm² M8
KRF 35- 8
Abiko
C-Klemmebakke FOR C15 Novopres
C 15 VERKTØY
Abiko
Abiko A 1525 SKK Insulated Butt Splice Connector 1.5 mm² Blue (Transparent)
Abiko

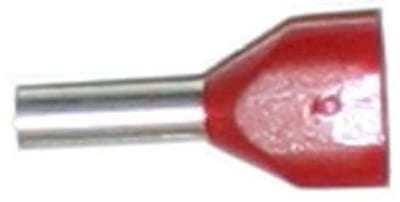

Abiko Insulated Twin Wire-End Ferrule 2×1.5 mm² 12 mm barrel
1,5 TVILL HL
Abiko

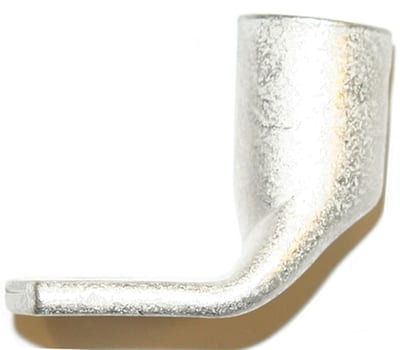

Abiko 240-12 Copper Tube Cable Lug 240 mm² M12, 90° Angled Palm
240-12 90 GR
Abiko

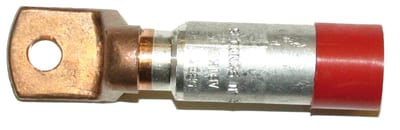

Abiko AKK 50-10 Aluminium-Copper Bimetallic Compression Cable Lug 50 mm² M10
Abiko

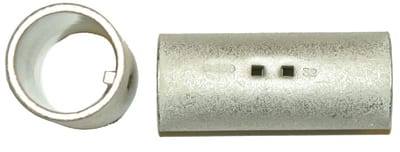

Abiko KS 1,5 Copper Compression Butt Splice 1.5 mm² (Uninsulated)
