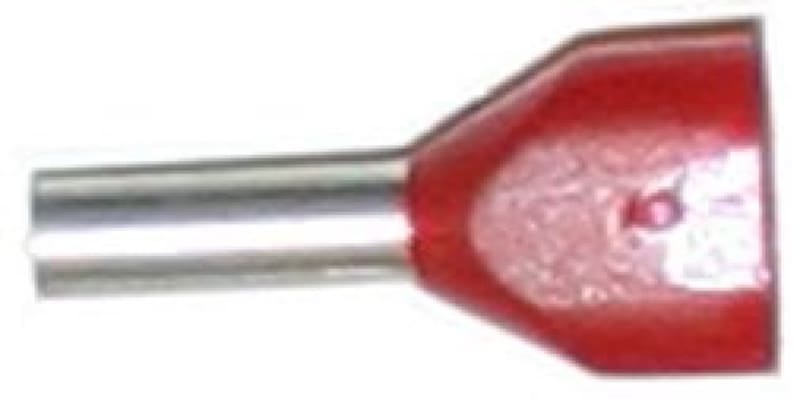

Abiko Insulated Twin Wire-End Ferrule 2×1.5 mm² 12 mm barrel

Abiko 1,5 TVILL HL — pre-insulated wire-end ferrule (cord-end terminal) that terminates two 1.5 mm² fine-stranded copper conductors in a single common barrel for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Barrel length 12 mm. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.

Type

Insulated Twin Wire-End Ferrule

Conductor cross-section

2 × 1.5 mm²

Barrel length

12 mm

Insulation

Polypropylene (PP), colour-coded by size (DIN 46228-4)

Barrel material

Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated

Conductor type

Fine-stranded / flexible copper (IEC 60228 Class 5/6)

Insulation heat resistance

+105 °C

Standard

DIN 46228-4

Series

Abiko (Elpress Group)

Manufacturer part number (MPN)

1,5 TVILL HL

EAN / GTIN

7070920029569

Sales unit

pcs

Package quantity

100 pcs

HS code

8536.90

HS Code

8536.90

• EAN 7070920029569
• SAP 1200605541
• Code 83010540
