Abiko AKK 50-10 Aluminium-Copper Bimetallic Compression Cable Lug 50 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description

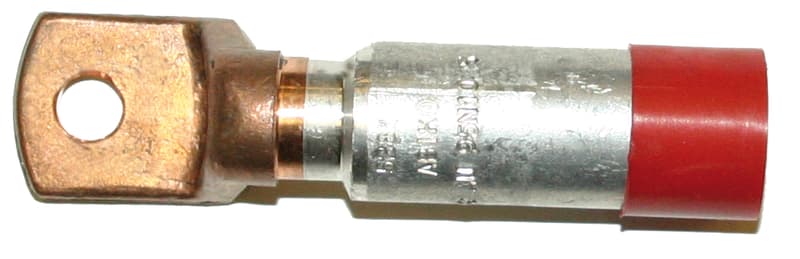

Abiko AKK 50-10 — aluminium-copper (AlCu) bimetallic compression cable lug for terminating a 50 mm² aluminium conductor onto an M10 stud. The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor connects directly to a copper busbar or apparatus terminal without a separate bimetal washer. Two compression crimps are made on the aluminium barrel; accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors.
Technical Specifications
- Type
- Aluminium-copper (AlCu) bimetallic compression cable lug
- Conductor cross-section
- 50 mm² (aluminium)
- Stud / bolt hole
- M10
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Friction-welded solid aluminium barrel + electrolytic copper palm
- Connection
- Aluminium conductor to copper busbar / apparatus terminal
- Crimp
- Two compression crimps on the aluminium barrel
- Compression connector standard
- IEC 61238-1
- Manufacturer part number (MPN)
- AKK 50-10
- EAN / GTIN
- 7070920013094
- Sales unit
- pcs
- Package quantity
- 12 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920013094
- SAP 1000018503
- Code 8490348
Product Documentation
