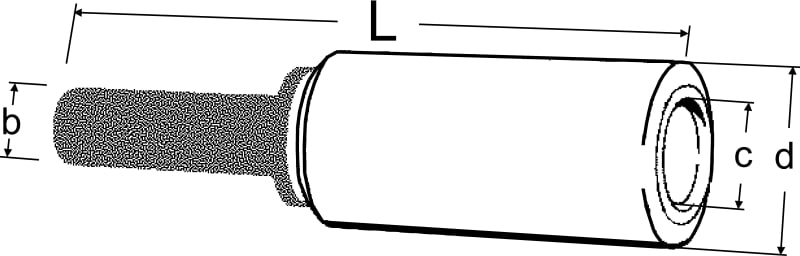

Abiko AKP240 Aluminium-Copper Bimetallic Pin Socket — 240 mm² Al Conductor, 19.8 mm Cu Pin

Abiko AKP240 — aluminium-copper (AlCu) bimetallic pin socket that terminates a 240 mm² aluminium conductor and presents a 19.8 mm solid copper pin for connection to copper-terminal apparatus such as screw or clamp terminals, isolators and circuit-breakers. The aluminium compression barrel is friction-welded to the copper pin from solid material, joining the dissimilar metals directly without a bimetal washer, and an internal oil-stop barrier separates the conductor from the pin. Two compression crimps are made on the aluminium barrel with the matching die; overall length 113.5 mm, strip length 61 mm. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors and is tested to IEC 61238-1. RoHS 2011/65/EU, REACH; CE, UKCA marked.

Type

Aluminium-copper (AlCu) bimetallic pin socket

Function

Terminates an aluminium conductor and presents a solid copper pin for connection to copper-terminal apparatus

Conductor cross-section (aluminium)

240 mm²

Copper pin diameter

19.8 mm

Overall length

113.5 mm

Strip length

61 mm

Material

Friction-welded solid aluminium barrel and solid copper pin (bimetallic)

Barrier

Internal oil-stop centre stop

Crimp

Two compression crimps on the aluminium barrel

Conductor class

Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium

Compression connector standard

IEC 61238-1

Compliance

RoHS 2011/65/EU, REACH; CE, UKCA marked

Manufacturer part number (MPN)

AKP240

EAN / GTIN

7070920012899

Sales unit

pcs

Package quantity

12 pcs

HS code

8536.90

HS Code

8536.90

• EAN 7070920012899
• SAP 1000061355
• Code 8874071
