Abiko KRTS 240-10 Copper Tube Cable Lug 240 mm² M10 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 240-10 — compression (crimp) copper tube cable lug for terminating a 240 mm² conductor onto an M10 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 240 mm²
- Stud / bolt hole
- M10
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 240-10
- EAN / GTIN
- 7070920016989
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016989
- SAP 1200075782
- Code 81923182
Product Documentation
More from Abiko
Abiko

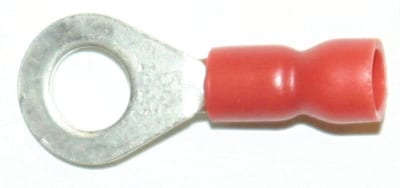

Insulated Copper RING Terminal (A 1516 R)
Abiko

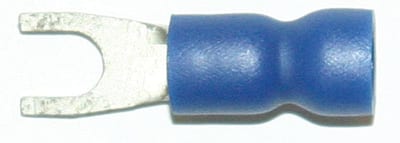

Abiko A2537GS Insulated Narrow Fork (Spade) Terminal 1.5–2.5 mm² M3.5 (Blue)
A 2537 GS
Abiko
Abiko KRF 16-5 Copper Tube Cable Lug 16 mm² M5
KRF 16- 5
Abiko

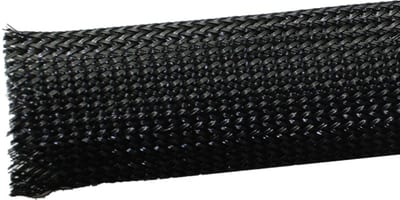

Abiko BSB 10 Braided Protective Sleeve, Black Halogen-Free
Abiko

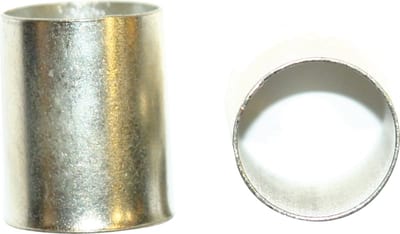

Abiko Uninsulated Wire-End Ferrule 4 mm² 10 mm barrel
4-10
Abiko
Abiko KRT 150-20 Copper Tube Cable Lug 150 mm² M20
Abiko

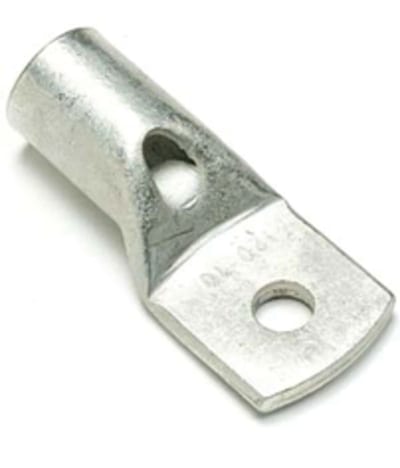

Abiko KRT 10-5 Copper Tube Cable Lug 10 mm² M5
