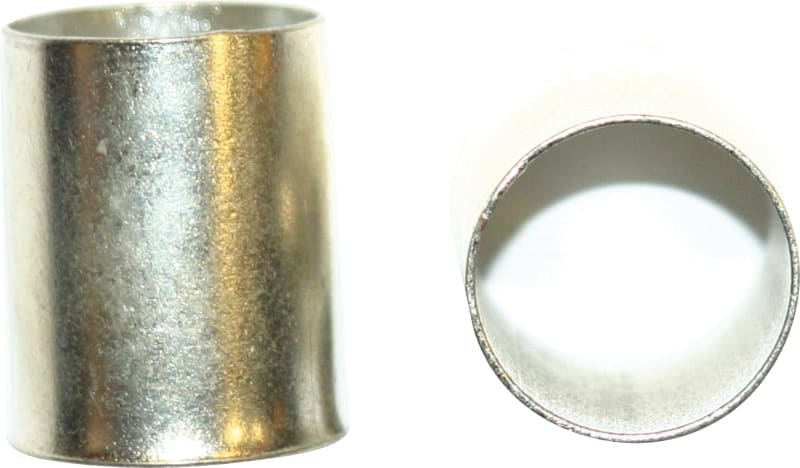

Abiko Uninsulated Wire-End Ferrule 4 mm² 10 mm barrel
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 4-10 — uninsulated wire-end ferrule (cord-end terminal) that terminates a 4 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The bare (uninsulated) barrel is crimped directly to the conductor to DIN 46228-1. Barrel length 10 mm. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-1. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Uninsulated Wire-End Ferrule
- Conductor cross-section
- 4 mm²
- Barrel length
- 10 mm
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Standard
- DIN 46228-1
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 4-10
- EAN / GTIN
- 7070920008984
- Sales unit
- pcs
- Package quantity
- 1000 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920008984
- SAP 1000040327
- Code 8759407
Product Documentation
More from Abiko
Abiko
Abiko KRT 150-20 Copper Tube Cable Lug 150 mm² M20
Abiko
Abiko KRT 10-5 Copper Tube Cable Lug 10 mm² M5
Abiko
Abiko KST 70 Copper Compression Butt Splice 70 mm² (Uninsulated)
Abiko
Cable lug, 10mm² for M6
B 1065 R
Abiko
Abiko Uninsulated Wire-End Ferrule 6 mm² 15 mm barrel
6-15
Abiko
Abiko VA 12897 Cabinet Key Set with Bits (Triangle 11 mm, Square 6-7-8 mm, Double-Wing 5 mm)
Abiko
Abiko 95-10 Copper Tube Cable Lug 95 mm² M10, 90° Angled Palm
95-10 90 GR
Abiko
UNINSULATED. Paralellsleeve 16 mm²
B 4005
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 4-10?
- 4-10 can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 4-10.
- What is the HS code for 4-10?
- The customs tariff (HS) code for 4-10 is 8536.90.
- Who manufactures 4-10?
- 4-10 is a Abiko product in the Electrical Components range.
- Is a datasheet available for 4-10?
- Yes — the 4-10 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 4-10?
- The minimum order quantity is 1.
- Is 4-10 available?
- Yes — 4-10 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
