Abiko KRF 16-5 Copper Tube Cable Lug 16 mm² M5
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRF 16- 5 — compression (crimp) copper tube cable lug for terminating a 16 mm² conductor onto an M5 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue)
- Conductor cross-section
- 16 mm²
- Stud / bolt hole
- M5
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRF
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRF 16- 5
- EAN / GTIN
- 7070920006553
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920006553
- SAP 1000036385
- Code 8768973
Product Documentation
More from Abiko
Abiko
Abiko BSB 10 Braided Protective Sleeve, Black Halogen-Free
Abiko
Abiko Uninsulated Wire-End Ferrule 4 mm² 10 mm barrel
4-10
Abiko
Abiko KRT 150-20 Copper Tube Cable Lug 150 mm² M20
Abiko
Abiko KRT 10-5 Copper Tube Cable Lug 10 mm² M5
Abiko
Abiko KST 70 Copper Compression Butt Splice 70 mm² (Uninsulated)
Abiko

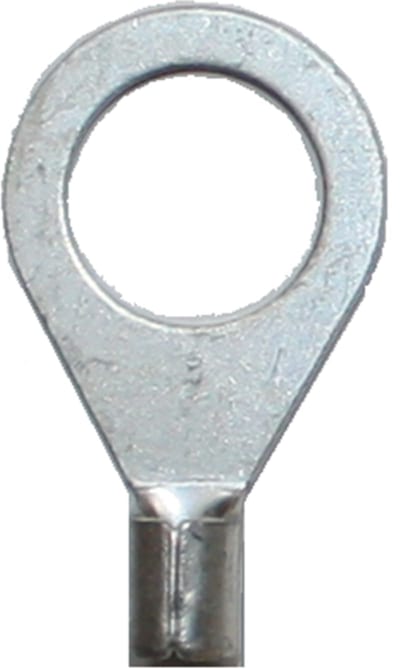

Cable lug, 10mm² for M6
B 1065 R
Abiko

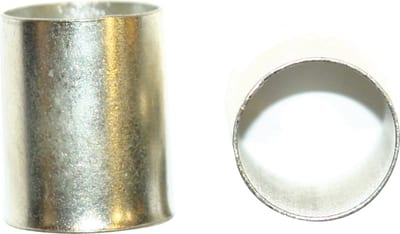

Abiko Uninsulated Wire-End Ferrule 6 mm² 15 mm barrel
6-15
Abiko
Abiko VA 12897 Cabinet Key Set with Bits (Triangle 11 mm, Square 6-7-8 mm, Double-Wing 5 mm)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRF 16- 5?
- KRF 16- 5 can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is KRF 16- 5.
- What is the HS code for KRF 16- 5?
- The customs tariff (HS) code for KRF 16- 5 is 8536.90.
- Who manufactures KRF 16- 5?
- KRF 16- 5 is a Abiko product in the Electrical Components range.
- Is a datasheet available for KRF 16- 5?
- Yes — the KRF 16- 5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRF 16- 5?
- The minimum order quantity is 1.
- Is KRF 16- 5 available?
- Yes — KRF 16- 5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
