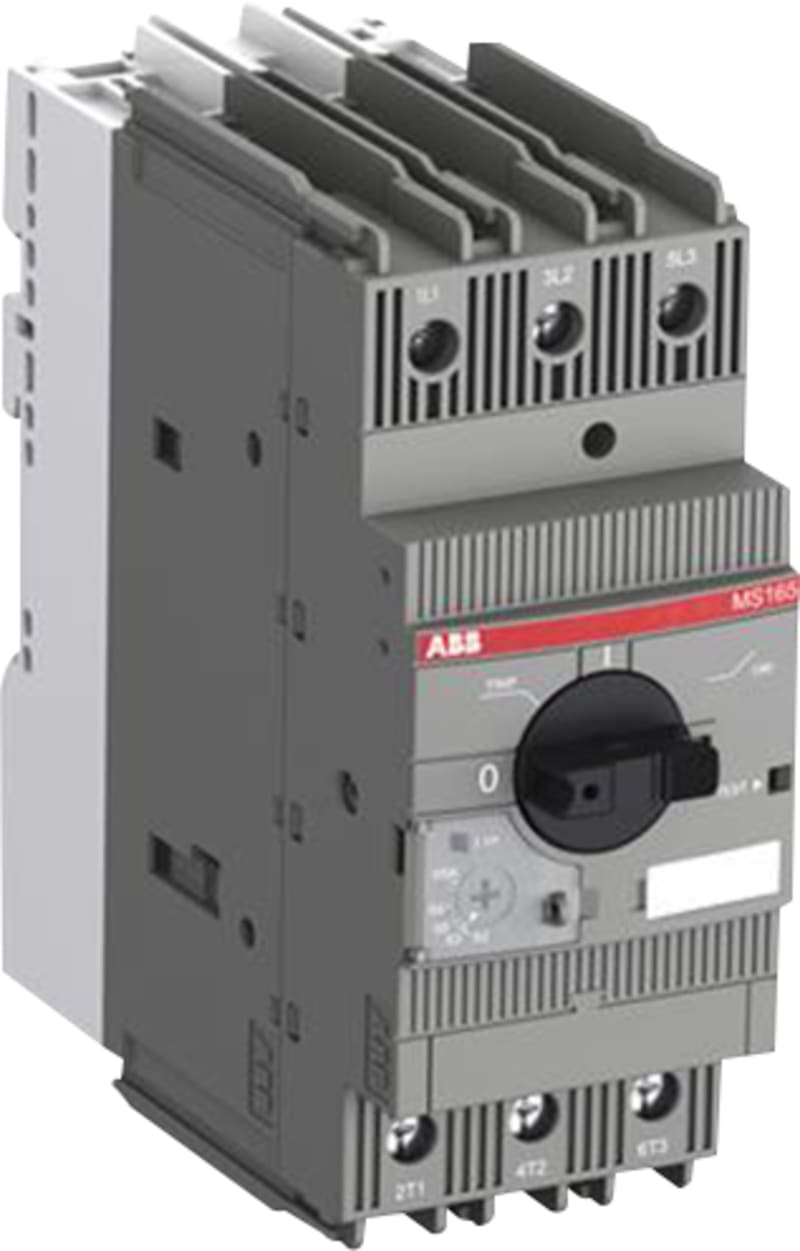

MS165-42 Motor protection circuit breaker 30 - 42 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon MS165-54 MS165-42 Manual motor protection circuit breaker trip class 10 setting range: 30 - 42 A.
Technical Specifications
- Manufacturer part number (MPN)
- MS165-54
- EAN / GTIN
- 4013614486104
- HS code
- 8536.90
- Sales unit
- pcs
- Setting range
- 30-42 A
- Width
- 55 mm
- Height
- 142.65 mm
- Depth
- 122.1 mm
- Rated operation power at AC-3, 400 V
- 22 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 42 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 250–690 V
- Overload release current setting
- 30–42 A
- Power loss
- 20.97 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Turn button
- Switch off technique
- Thermomagnetic
- Rated operation power at AC-3, 230 V
- 22 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 50 kA
- Adjustment range undelayed short-circuit release
- 630 A
- Phase failure sensitive
- Yes
- Device construction
- Complete device in housing
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013614486104
- SAP 1000744087
- Code 8425168
Product Documentation
