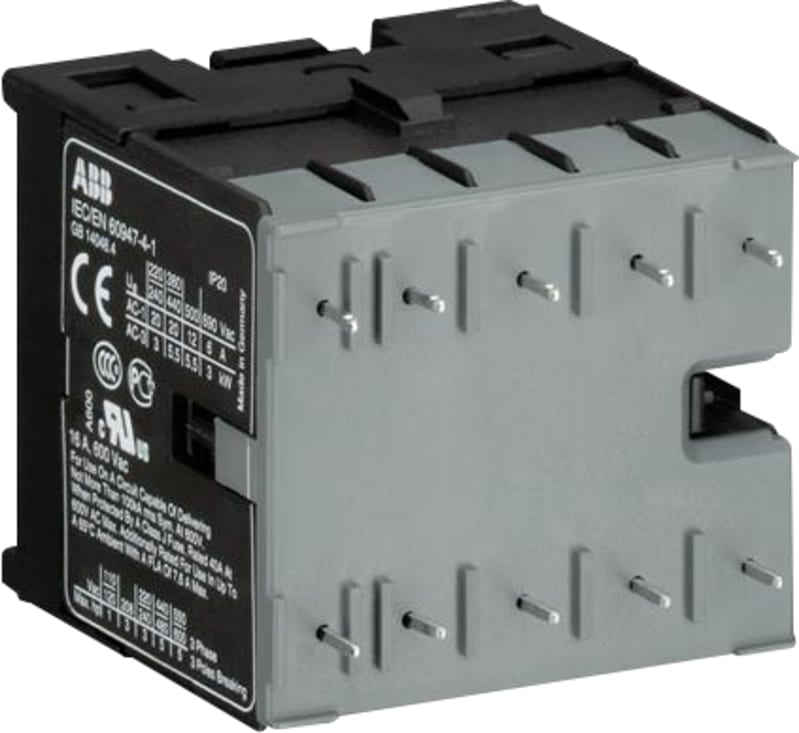

Contactor BC6-30-01P 24V DC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon BC6-30-01-P-01 24VDC Mini Contactor.
Technical Specifications
- Manufacturer part number (MPN)
- BC6-30-01-P-01 24VDC
- EAN / GTIN
- 4013614053276
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V
- Width
- 47.5 mm
- Height
- 45.2 mm
- Depth
- 47.7 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 4 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 9 A
- Rated operation current Ie at AC-1, 400 V
- 12 A
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Type of electrical connection of main circuit
- PCB connection
- Operating voltage AC 50 Hz
- 220–690 V
- Operating voltage AC 60 Hz
- 220–690 V
- Voltage type for actuating
- DC
- Rated operation power NEMA
- 1.4914 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013614053276
- SAP 1000055165
- Code 8886272
Product Documentation
