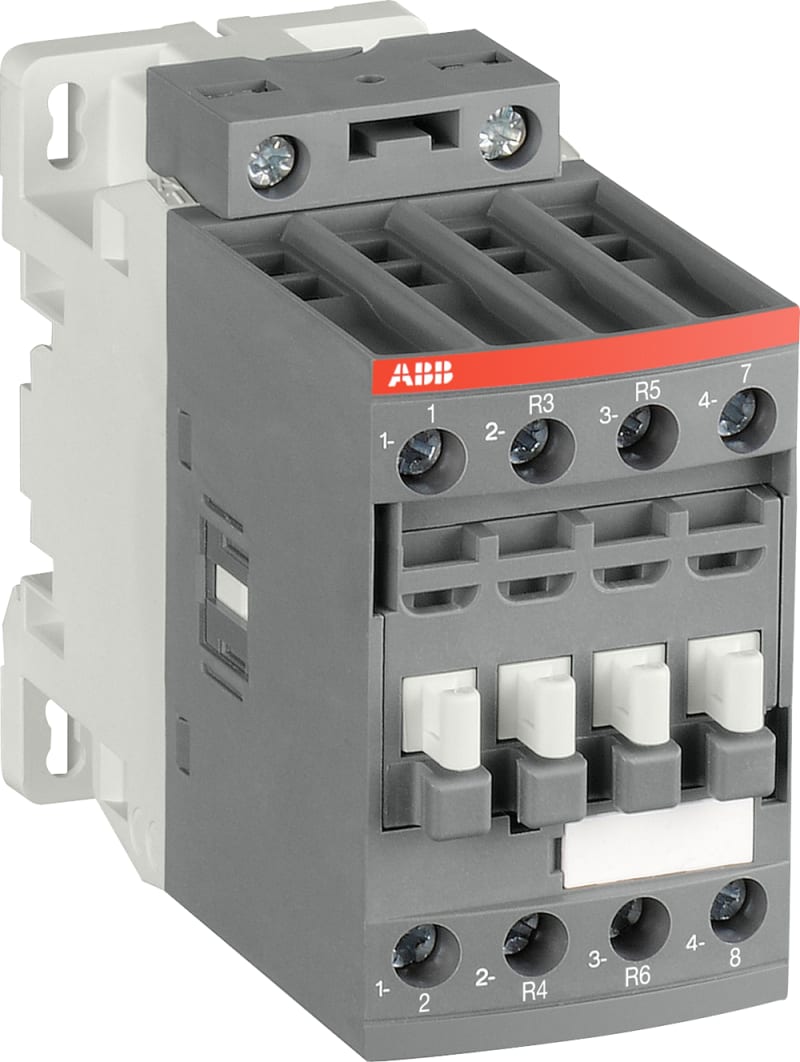

AF26Z-22-00-20, 12-20VDC (AF26Z-22-00-20 12-20VDC)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon AF26Z-22-00-20 12-20VDC AF26Z-22-00-20.
Technical Specifications
- Manufacturer part number (MPN)
- AF26Z-22-00-20 12-20VDC
- EAN / GTIN
- 3471523116801
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 101 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 11 kW
- Number of normally open contacts as main contact
- 2
- Number of normally closed contacts as main contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 22 A
- Rated operation current Ie at AC-1, 400 V
- 45 A
- Rated control supply voltage AC 50 Hz
- 12–20 V
- Rated control supply voltage AC 60 Hz
- 12–20 V
- Rated control supply voltage DC
- 12–20 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523116801
- SAP 1200092848
- Code 81961085
Product Documentation
More from ABB Automasjon
ABB Automasjon
Contactor BC6-30-01P 24V DC
BC6-30-01-P-01 24VDC
ABB Automasjon
ABB OXP6X360 PSTL Shaft 14.2 6X360
ABB Automasjon
ABB 1SEP407682R0003 KO-500 Galvanized upper part w/ FS 630 A / 400 with PE/PEN bar
ABB Automasjon
AF09-22-00-12 48-130V AC/DC
AF09-22-00-12 48-130V50/60HZ-DC
ABB Automasjon
ABB KIT FC CuAl 1X240MM2 T5 400 3PCS FRONT TERMINALS FOR CABLES IN COPPER-ALUMINIUM 1X240MM2 3PCS T5 400
KIT FC CuAl 1x240mm2 T5 400 3pcs
ABB Automasjon
Contactor AF80-40-00-11 (AF80-40-00-11 24-60V50/60HZ 20-60VDC)
ABB Automasjon
ABB NHP 139227R0001 DK 240/100 / 400 A /100mm Feeding module
ABB Automasjon
AF09-40-00-14 250-500V AC/DC
AF09-40-00-14 250-500V50/60HZ-DC
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AF26Z-22-00-20 12-20VDC?
- AF26Z-22-00-20 12-20VDC can be ordered from cballast.com as a ABB Automasjon catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB Automasjon product?
- The manufacturer part number is AF26Z-22-00-20 12-20VDC.
- What is the HS code for AF26Z-22-00-20 12-20VDC?
- The customs tariff (HS) code for AF26Z-22-00-20 12-20VDC is 8536.90.
- Who manufactures AF26Z-22-00-20 12-20VDC?
- AF26Z-22-00-20 12-20VDC is a ABB Automasjon product in the Electrical Components range.
- Is a datasheet available for AF26Z-22-00-20 12-20VDC?
- Yes — the AF26Z-22-00-20 12-20VDC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AF26Z-22-00-20 12-20VDC?
- The minimum order quantity is 1.
- Is AF26Z-22-00-20 12-20VDC available?
- Yes — AF26Z-22-00-20 12-20VDC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
