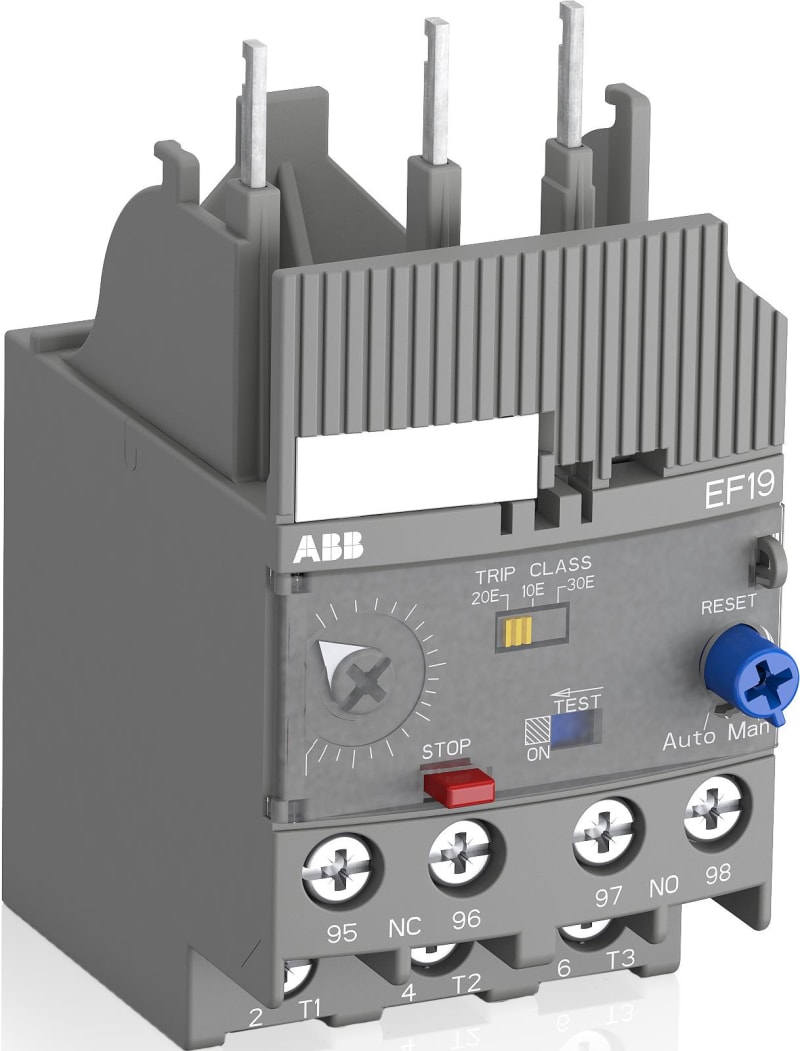

EOL EF19 DU 1,0 KL 10-30

ABB EF19-1.0 — The EF19-1.0 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory. The EF19 and EF45 have ATEX and IECEx certification 1)1) ATEX is valid for products produced from week 42, 2014.IECEx is valid for products produced from week 15, 2017.

Manufacturer part number (MPN)

EF19-1.0

EAN / GTIN

4013614403996

Sales unit

pcs

Country of Origin

India

Product Sales Status

Active

Product Net Width

44.4 mm

Product Net Height

85 mm

Product Net Depth / Length

59.3 mm

Setting Range

0.30 ... 1.0 A

Rated Operational Voltage

Auxiliary Circuit 600 V AC/DC; Main Circuit 690 V AC

Rated Operational Current (I e )

1 A

Rated Frequency (f)

Auxiliary Circuit 50 Hz; Auxiliary Circuit 60 Hz; Auxiliary Circuit DC; Main Circuit 50 Hz; Main Circuit 60 Hz

Rated Impulse Withstand Voltage (U imp )

Auxiliary Circuit 6 kV; Main Circuit 6 kV

Rated Insulation Voltage (U i )

690 V

Number of Poles

3P

Number of Auxiliary Contacts NC

1

Number of Auxiliary Contacts NO

1

Number of Protected Poles

3

Conventional Free-air Thermal Current (I th )

Auxiliary Circuit NC 6 A; Auxiliary Circuit NO 6 A

Rated Operational Current AC-15 (I e )

(240 V) NC 3 A; (240 V) NO 3 A; (400 V) NC 1.1 A; (400 V) NO 1.1 A; (500 V) NC 0.75 A; (500 V) NO 0.75 A

Rated Operational Current DC-13 (I e )

(125 V) NC 0.55 A; (125 V) NO 0.5 A; (24 V) NC 1.5 A; (24 V) NO 1.5 A; (250 V) NC 0.27 A; (250 V) NO 0.27 A; (60 V) NC 0.55 A; (60 V) NO 0.55 A

Degree of Protection

IP20

Pollution Degree

3

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible 1/2x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm²

Connecting Capacity Main Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible 1/2x 0.75 ... 2.5 mm²; Rigid 1/2x 1 ... 4 mm²

Tightening Torque

Auxiliary Circuit 0.8 ... 1.2 N·m; Main Circuit 0.8 ... 1.5 N·m

Wire Stripping Length

Auxiliary Circuit 9 mm; Main Circuit 9 mm

Recommended Screw Driver

Auxiliary Circuit Pozidriv 2; Main Circuit Pozidriv 2

Mounting Position

1 ... 6

Power Loss

at Rated Operating Conditions per Pole 0.005 ... 0.054 W

Suitable For

AF09; AF12; AF16; AF26

Standards

IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Maximum Operating Voltage UL/CSA

Main Circuit 600 V AC

Contact Rating UL/CSA

(NC:) B600; (NC:) Q600; (NO:) B600; (NO:) Q600

Connecting Capacity Main Circuit UL/CSA

Flexible 1/2x 16-10 AWG; Stranded 1/2x 16-10 AWG

Connecting Capacity Auxiliary Circuit UL/CSA

Flexible 1/2x 18-10 AWG; Stranded 1/2x 18-10 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 7 ... 1 in·lb; Main Circuit 7 ... 13 in·lb

Ambient Air Temperature

Operation -25 ... +70 °C; Operation Compensated -25 ... +70 °C; Storage -50 ... +80 °C

Ambient Air Temperature Compensation

Yes

Maximum Operating Altitude Permissible

2000 m

Resistance to Shock acc. to IEC 60068-2-27

11 ms Pulse 25g

Resistance to Vibrations

3g 3 ... 150 Hz

RoHS Information

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA

2CMT2023-006525

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

UL 2799 Zero Waste To Landfill Validation available

EcoSolutions Profile

1SFC100125C0415

End Of Life Disassembling Instructions

1SAC200381H0001

Environmental Information

1SAC200096H0001

Environmental Product Declaration - EPD

1SAC200355H0001

Improved Energy Efficiency for Customers

Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line; Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 61.1 %

ABS Certificate

1SAA941002-0102

ATEX Certificate

1SAA941004-3901

BV Certificate

1SAA941002-0201

CB Certificate

1SAA964002-2002

CCS Certificate

1SAA941001-0901

CQC Certificate

CQC2008010309289447

Declaration of Conformity - CCC

2020980309000285

Declaration of Conformity - CE

1SAD101100-3601

Declaration of Conformity - UKCA

1SAD201100-3601

DNV Certificate

1SAA941003-0302

EAC Certificate

1SAA941003-2701

IECEx Certificate

1SAA941000-4001

LR Certificate

1SAA941002-0501

RINA Certificate

RINA_ELE376813CS

RMRS Certificate

1SAA964000-0703

UL Certificate

E48139-19990512

Object Classification Code

F

ETIM 9

EC001080 - Electronic overload relay

eClass

V11.0 : 27371502

UNSPSC

39122330

IDEA Granular Category Code (IGCC)

5365 >> Electronic overload relay

E-Number (Finland)

3706152

E-Number (Norway)

4116831

E-Number (Sweden)

3224181

HS Code

8536.49

• EAN 4013614403996
• SAP 1000226857
• Code 8129820
