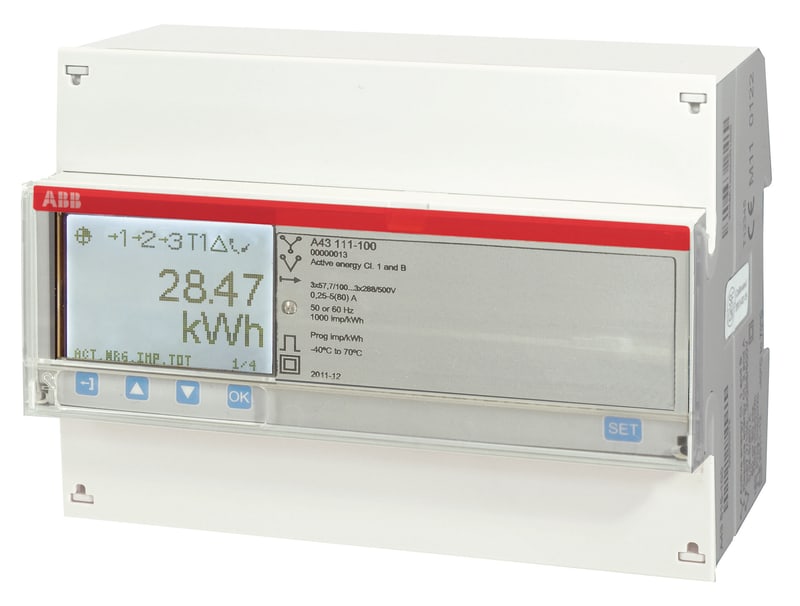

ABB A43 313-100 Three-Phase Direct Meter Silver M-Bus 80 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB A43 313-100 Silver three-phase electricity meter with direct connection, 3x57-288 / 3x288-500 V, 50/60 Hz, active class 1 and reactive class B measurement, M-Bus communication, infrared port and pulse output. Seven-module DIN-rail housing, IP20, four-conductor pole configuration, nominal current 80 A. MID approved.
Technical Specifications
- Manufacturer part number (MPN)
- A43 313-100 Sølv M-bus
- EAN / GTIN
- 7392696705264
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 123 mm
- Model
- Direct measurement
- Height
- 26.5 mm
- Depth
- 65 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 0.807 W
- Frequency
- 50–60 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 7
- Number of positions total (counter)
- 7
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Energy type
- Effective power and reactive power
- Tariff type
- Multi-tariff
- Tariff control
- External
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 1–9999 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 57.7–500 V
- Nominal voltage (Un) L-L
- 57.7–500 V
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 7392696705264
- SAP 1000408000
- Code 81095039
Product Documentation
More from ABB
ABB

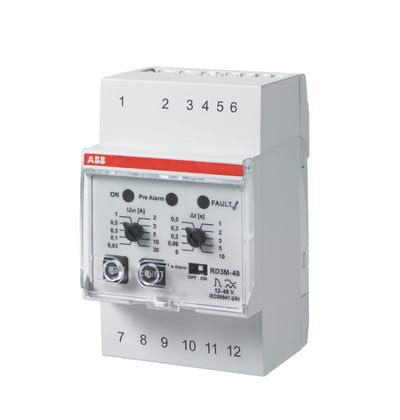

ABB RD3M-48 Residual Current Relay — Type A, 12 … 48 V AC/DC
2CSJ202001R0001
ABB

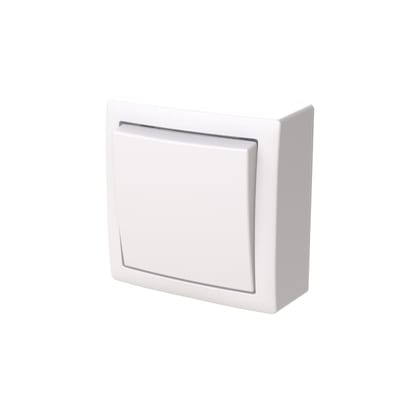

SAGA WALL-Mounted 7 Switch Intermediate
2TKA00005386
ABB
Impressivo 3-H KAP without BOX 40/85 Anthracite
2TKA000383G1
ABB

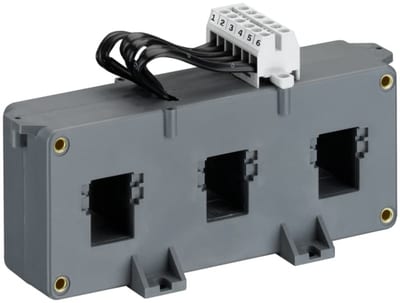

ABB UMC CT4L310R/4 Three-Phase Current Transformer, 310/4 A
1SAJ929500R0310
ABB

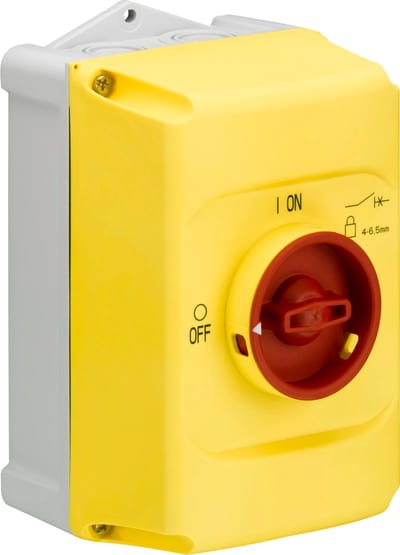

Enclosure IB132-Y
ABB

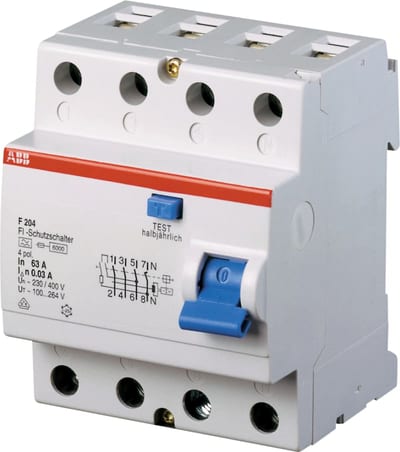

Residual Current Circuit Breaker F204 A 100A/300MA
F204A-100/0,3
ABB
ABB VFI online double conversion,400V,9000W,RS232,USB,COM slot,includes battery links plus trays and shelves,up to 2X48X7/8/9 Ah blocks 4NWP103584B1000
ABB

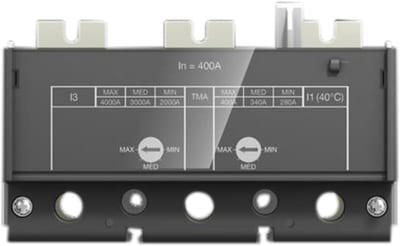

ABB 1SDA100615R1 Thermomagnetic Release Three-POLE IN AC-DC MA R 400 I3=2800...5200 XT5
