Enclosure IB132-Y
Pricing
Request a quote
We reply within 24 hours
Product Description

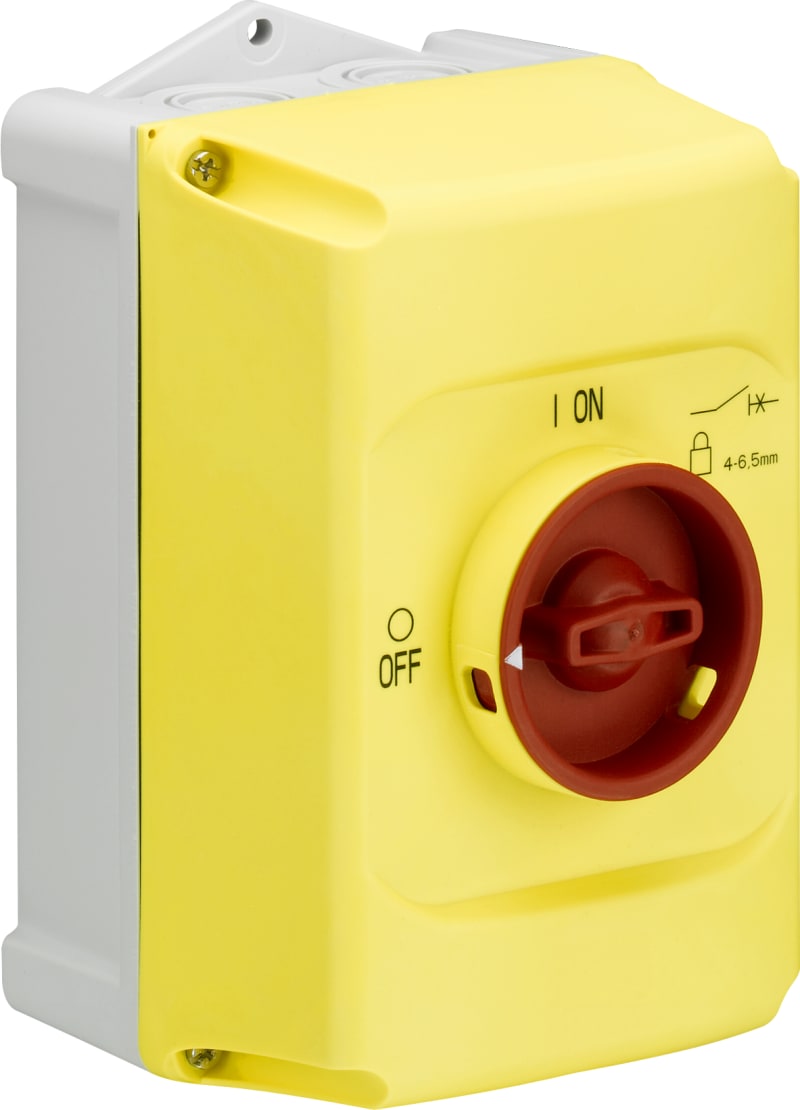

ABB IB132-Y — enclosure is suitable for manual motor starter MS116/MS132. The combination of manual motor starter and enclosure allows to setup all required control and protection functions for single machine installations. The enclosure has a IP65 degree of protection. Additional mounting of auxiliary and signalling contacts, shunt trips and undervoltage release is possible. The handle is up to 3-times lockable in OFF position.
Technical Specifications
- Manufacturer part number (MPN)
- IB132-Y
- EAN / GTIN
- 4013614421624
- Sales unit
- pcs
- Product Net Width
- 118 mm
- Product Net Height
- 194 mm
- Product Net Depth / Length
- 119 mm
- Degree of Protection
- IP65
- Contact Position Indication
- ON / OFF / TRIP
- Standards
- CSA 22.2 No. 14; IEC/EN 60947-1; IEC/EN 60947-4-1; UL 508
- Remarks
- For detailed specification see installation instruction
- Ambient Air Temperature
- Operation 0 ... +40 °C; Storage -50 ... +80 °C
- cUL Certificate
- cUL_E137861
- Declaration of Conformity - CE
- 1SAD101100-3411
- Declaration of Conformity - UKCA
- 1SAD201100-3411
- UL Certificate
- UL_E137861
- Object Classification Code
- U
- ETIM 9
- EC000712 - Empty enclosure for switchgear
- eClass
- V11.0 : 27371301
- UNSPSC
- 39121334
- IDEA Granular Category Code (IGCC)
- 4492 >> Modular electrical enclosure
- E-Number (Finland)
- 3705860
- E-Number (Norway)
- 4364201
- E-Number (Sweden)
- 3112074
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4013614421624
- SAP 1000226852
- Code 8955588
Product Documentation
