ABB 1SDA100615R1 Thermomagnetic Release Three-POLE IN AC-DC MA R 400 I3=2800...5200 XT5
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SDA100615R1 Thermomagnetic Release Three-POLE IN AC-DC MA R 400 I3=2800...5200 XT5 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Environmental Information: 9AKK108467A6707; Product Main Type: Accessories for Tmax XT; Product Type: Accessory; Suitable For: XT5; Configuration Type: Loose or configurable.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA100615R1
- EAN / GTIN
- 8056221006910
- Sales unit
- pcs
- Number of poles
- 3
- Environmental Information
- 9AKK108467A6707
- Circuit Breaker Type to be Associated
- Motor Protection
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT5
- Configuration Type
- Loose or configurable
- Current Type
- AC/DC
- Order Multiple
- 1 piece
- Rated Current (I n )
- 400 A
- Rated Instantaneous Short-Circuit Current Setting (I i )
- 5200 A
- Release
- MA
- Release Type
- M
- Standards
- IEC60947-2
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH002011A1518
- ETIM 9
- EC001023 - Shunt release (for power circuit breaker)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27370418
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8056221006910
- SAP 1200638253
- Code 83055674
Product Documentation
More from ABB
ABB
Voltage Module VI150-FBP.0
1SAJ650000R0100
ABB

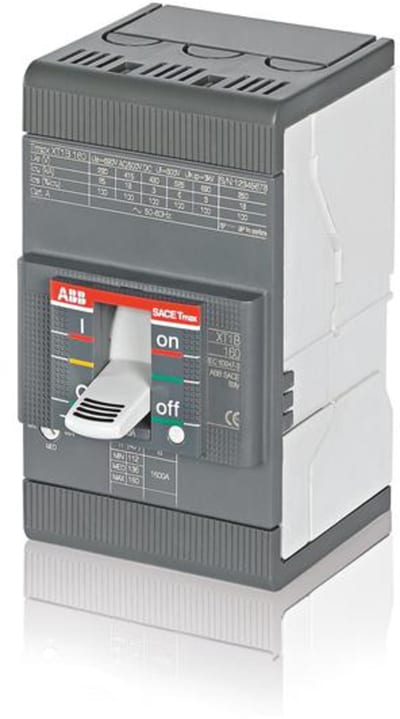

ABB SACE Tmax XT1N 160 Moulded-Case Circuit Breaker — TMD 80-800, In=80 A, 3-Pole
XT1N 160 TMD 80-800 3p F F
ABB

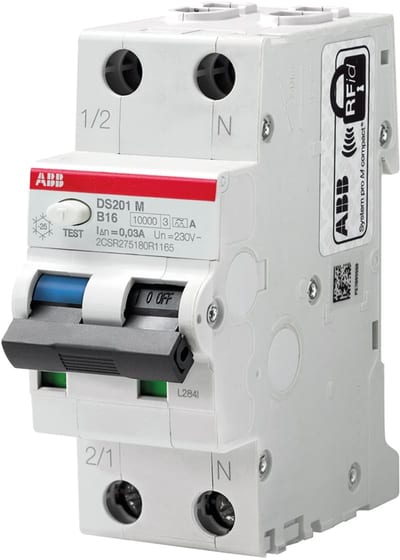

Residual Current Circuit Breaker WITH Overcurrent DS201 M C20 A100MA
2CSR275180R2204
ABB

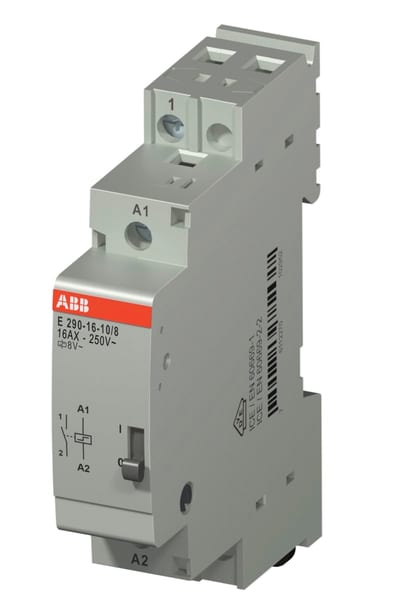

ABB Impulse Relay E290-16-10/8
2TAZ312000R2061
ABB

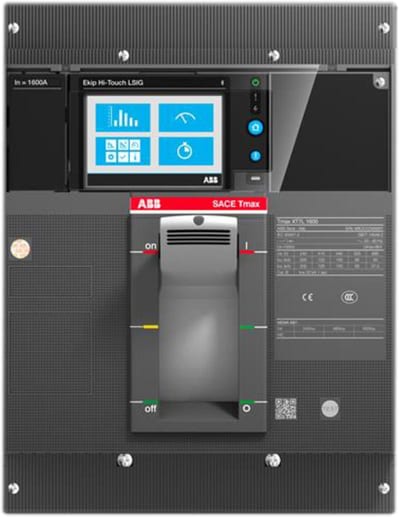

ABB SACE Tmax XT7L 1250 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI 1250A, In=1250 A, 3-Pole
1SDA100984R1
ABB

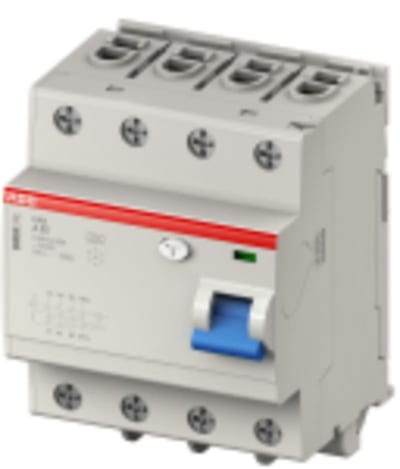

Residual Current Circuit Breaker F404 A 40/300MA
2CCF544130E0400
ABB

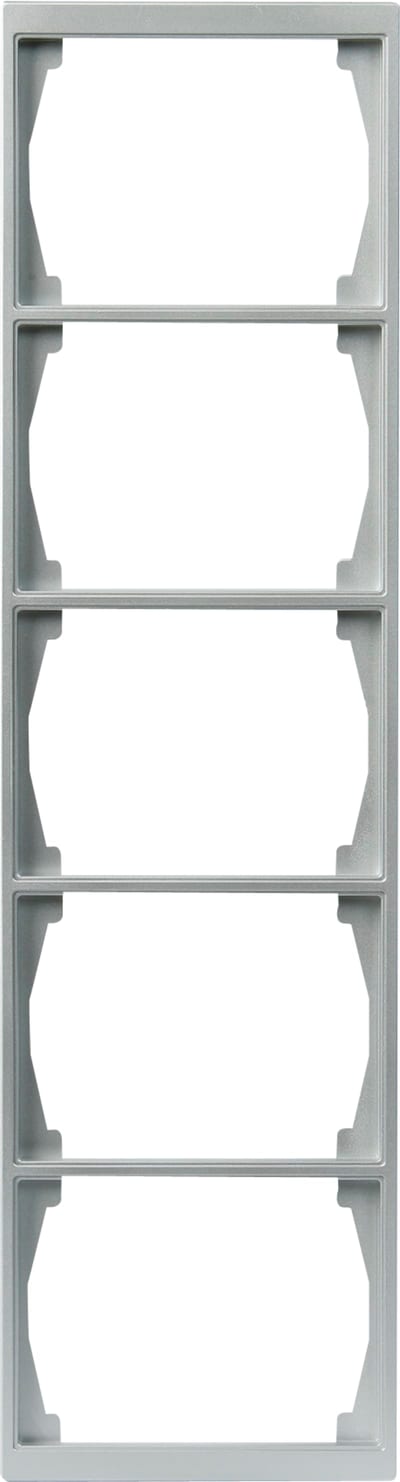

Impressivo Frame 5-Hole 100mm Aluminium
1725F100-83
ABB

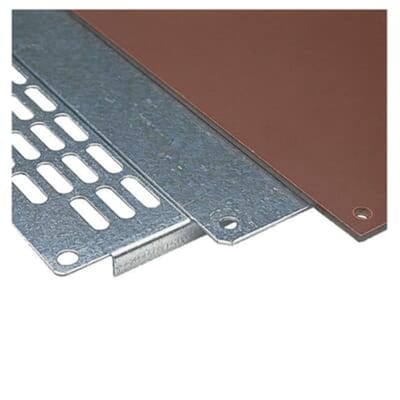

ARIA 108 Mounting PLATE, Steel
