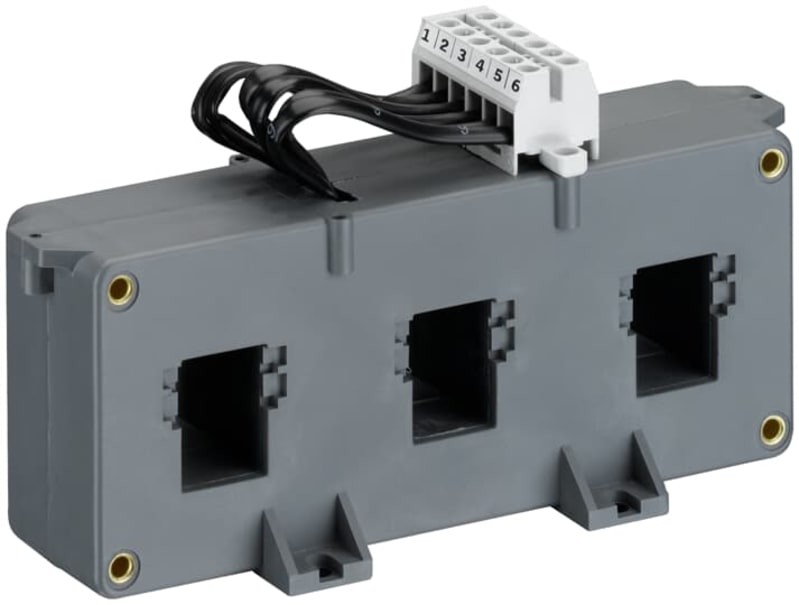

ABB UMC CT4L310R/4 Three-Phase Current Transformer, 310/4 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB CT4L310R/4 three-phase current transformer for UMC100-FBP and UMC100.3 universal motor controllers. Rated current range 185-310 A, primary 310 A, secondary 4 A. Screw terminals, 7 mm stripping length, dimensions 192 x 43 x 98 mm. Country of origin India.
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ929500R0310
- EAN / GTIN
- 4013614482120
- Sales unit
- pcs
- Country of Origin
- India
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Net Width
- 192 mm
- Product Net Depth / Length
- 43 mm
- Product Net Height
- 98 mm
- Connecting Capacity
- 1x 1.5-6 mm²
- Recommended Screw Driver
- Pozidriv 1
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1
- Suitable For
- UMC100-FBP; UMC100.3
- Suitable for Product Class
- Universal Motor Controllers
- Terminal Type
- Screw Terminals
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 16-10 AWG; Rigid 1x 16-10 AWG
- ABS Certificate
- 9AKK106930A7739
- ATEX Certificate
- Not available
- CB Certificate
- DK-41658-A1-UL
- cULus Certificate
- CULUS508_20120727-E356879
- Declaration of Conformity - CE
- 1SVD981040-00
- DNV Certificate
- TAA000015X-revision4
- GL Certificate
- 1SAA962005-0401
- eClass
- V11.0 : 27210902
- E-Number (Norway)
- 4552512
- ETIM 6
- EC002048 - Current transformer
- IDEA Granular Category Code (IGCC)
- 4183 >> Current transformer
- Object Classification Code
- T
- UNSPSC
- 39121032
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 4013614482120
- SAP 1200640696
- Code 83056402
Product Documentation
