METER 3F A43 213-100
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB A43 213-100 Bronze M-bus — A-series contactor. Standard 3-pole contactor for AC-3 motor duty. Bronze, Dir, 3X57-288/3x288-500 V, 50/60 Hz, Akt Cl. 1 & B, M-Bus, IR, Pulse.
Technical Specifications
- Manufacturer part number (MPN)
- A43 213-100 Bronze M-bus
- EAN / GTIN
- 7392696705233
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 123 mm
- Model
- Direct measurement
- Height
- 26.5 mm
- Depth
- 65 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 0.807 W
- Frequency
- 50–60 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 7
- Number of positions total (counter)
- 7
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Energy type
- Effective power and reactive power
- Tariff type
- One-tariff
- Tariff control
- Internal/external
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 1–9999 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 57.7–500 V
- Nominal voltage (Un) L-L
- 57.7–500 V
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 7392696705233
- SAP 1000327831
- Code 8883425
Product Documentation
More from ABB
ABB

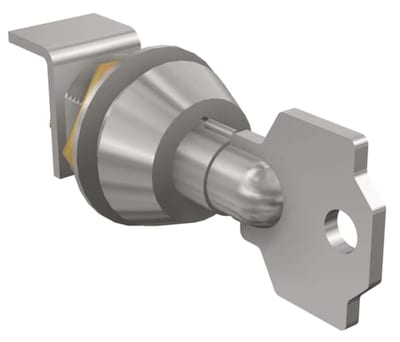

RHL XT7 KEY LOCK Ronis EQ. FEL. A 1228
1SDA105086R1
ABB

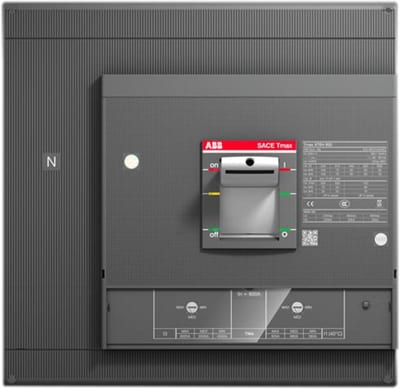

ABB SACE Tmax XT6N 800 Moulded-Case Circuit Breaker — TMA 630-6300, In=630 A, 4-Pole
