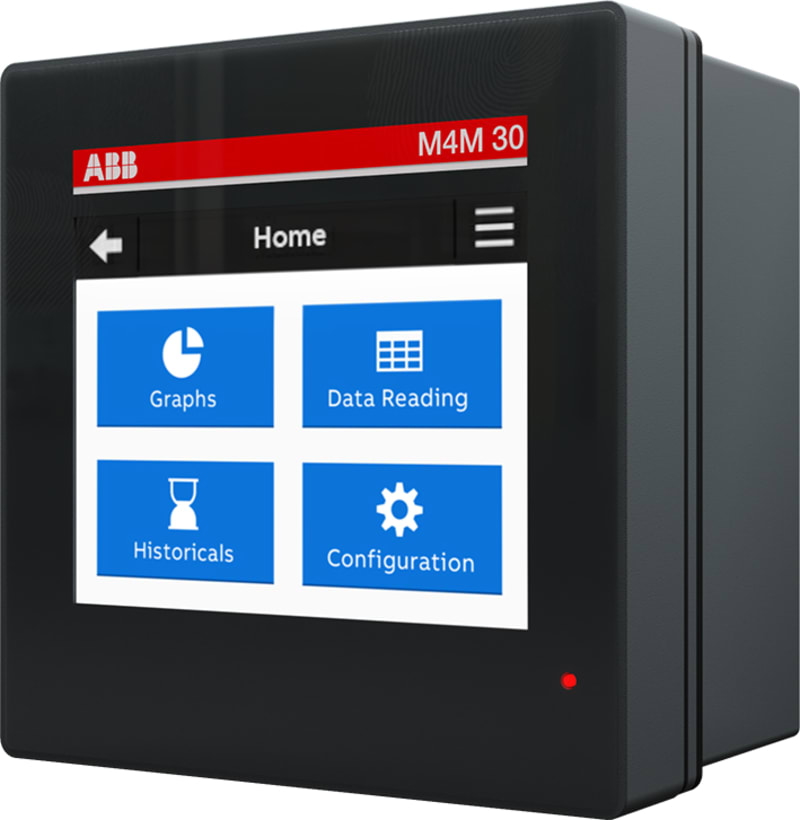

ABB M4M 30 MODBUS is a network analyzer with 4 programmable I/O, aux supply 48-240 V AC/DC, Bluetooth and Modbus RTU 2CSG274761R4051

ABB 2CSG274761R4051 — M4M 30 MODBUS is a network analyzer with 4 programmable I/O, aux supply 48-240 V AC/DC, Bluetooth and Modbus RTU.

Manufacturer part number (MPN)

2CSG274761R4051

EAN / GTIN

8012542747611

Sales unit

pcs

Country of Origin

China

Lead Time

67 day

Product Sales Status

Inactive

Carbon Footprint (Full Lifecycle)

99.70855 kg CO₂ eq

EcoSolutions Profile

9AKK108470A1669

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 54.85 %

Material Resource Reduction (wt. %)

Design for Reduced Resource Consumption - 22 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Improved Energy Efficiency for Customers

Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line; Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line; Process Efficiency - Product improves/optimizes process; Process Efficiency - Product contribute to making customer’s operations more resilient and reliable; Process Efficiency - Product contribute to reducing customer operations environmental footprint; Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset

Extended Product Lifetime

Product Upgradability; Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services

End Of Life Disassembling Instructions

9AKK108470A0840

Environmental Product Declaration - EPD

9AKK108469A8099

Current Rating

5 A

Communication Interface

Modbus

Accuracy

Active Energy ±0.5%

Measuring Instrument Conformity

Domestic

Meter Tariff Control

Internal; External

Meter Tariff Rating

Multi-Tariff

Pulse Output Rate

1 … 999999

Model Number

Measurement transformer

Number of Poles

3P or 4P

Number of Phases

3-phase

Number of Counter Positions

8

Number of Digital In/Outputs

4 Programmable Inputs/Outputs

Energy Meter Type

Effective Power; Blind Power

Pulse Output Type

Electrical

Type of Indicator

Digital

Additional Information

CT (1A, 5A)

Communication

Modbus RTU, Bluetooth

Rated Voltage (U r )

46 … 400 (Un) N-L V; 80 ... 690 (Un) L-L V

Voltage Range

50 … 400 V

Rated Current (I n )

Maximum 6 A

Frequency ( f )

143 … 60 Hz

Power Consumption (@P cons )

10 W

Ambient Air Temperature

Operation -25 ... 70 °C

Degree of Protection

IP54

Width in Number of Modular Spacings

5.5

Product Net Width

96 mm

Product Net Height

96 mm

Product Net Depth / Length

77 mm

CAD Dimensional Drawing

9AKK107492A5448

Declaration of Conformity - CE

9AKK108467A6267

EU Data Act Compliance Declaration

9AKK108471A5057

Instructions and Manuals

2CSG445042D0201

Mounting Type

Front Panel

ETIM 9

EC001506 - Kilowatt-hour meter

ETIM 10

EC001506 - Electricity meter

eClass

V11.0 : 27142316

Object Classification Code

P

Mounting method

Front mounting

Width

96 mm

Model

Measurement transformer

Height

96 mm

Depth

77 mm

Suitable for

Purchase/supply

Type of indication

Digital

Max. current (Imax)

6 A

Number of positions total (counter)

8

Type of meter

Electronic

Type of interface

Modbus

Energy type

Effective power and reactive power

Tariff type

Multi-tariff

Tariff control

Internal/external

Escapement mechanism

Yes

Calibrated

Yes

Approval

Domestic

Pulse output

Electrical

Pulse type

S0

Pulse rate

1–999999 Imp/kWh (kvarh)

Accuracy class

C

Pole type

Three conductor/four conductor

Measurement type load profile

Yes

EEC40 signature

No

With lock code

No

Nominal voltage (Un) N-L

48–240 V

Nominal voltage (Un) L-L

87–690 V

Nominal current (In)

6 A

HS Code

9030.31

• EAN 8012542747611
• SAP 1200386409
• Code 82430921
