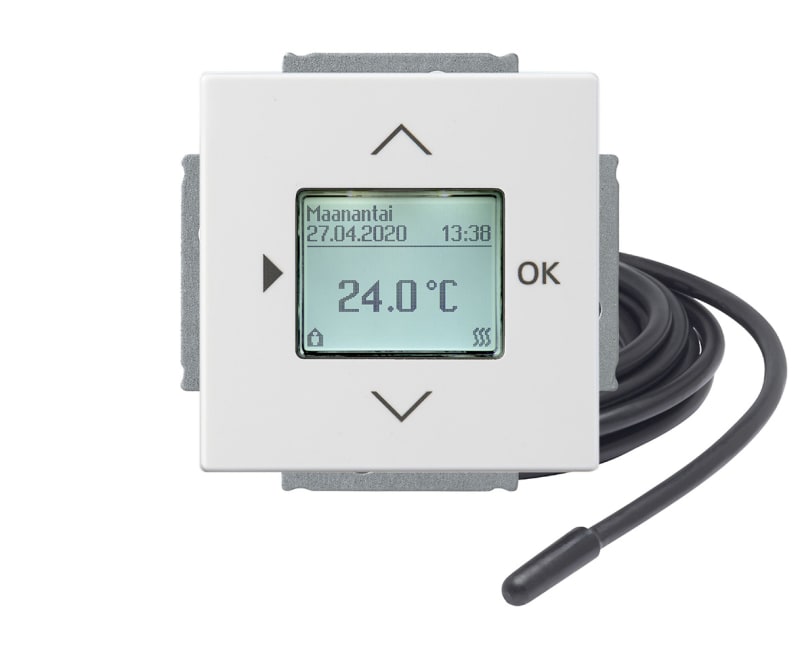

ABB 2TKA00004035 Impressivo Recessed Thermostat with Display and Floor Sensor

ABB 2TKA00004035 is an Impressivo recessed room and floor thermostat with digital display, supplied with a floor sensor and without a frame, in white RAL 9016. The controller uses OpenTherm communication with a 3/4-wire resistance-sensor input, P control characteristic, and a weekly clock with seven switching programmes. Contacts are rated 16 A at up to 250 V with normally open configuration, IP21 protection, and 0.05 W standby power (class I). The 85 by 85 by 38 mm enclosure suits standard flush boxes.

Manufacturer part number (MPN)

2TKA00004035 EAN / GTIN: 6438199005973 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Communications protocol: OpenTherm Connection: 3-/4-wire Control characteristic: P Suitable for heating: Yes Number of heater outputs: 1 Sensor/feeler type: Resistance sensor Type of clock: Week clock Clock model: digital Operation: Button Number of switching programmes: 7 Max. contact voltage: 250 V Max. contact load: 16 A Degree of protection (IP): IP21 Colour: White RAL-number: 9016 Width: 85 mm Depth: 85 mm Height: 38 mm Class of the temperature control: I Standby power consumption (solstandby): 0.05 W Contact type: Normally open contact (NO) Country of origin: Poland

HS Code

8536.90

• EAN 6438199005973
• SAP 1200477161
• Code 82579961
