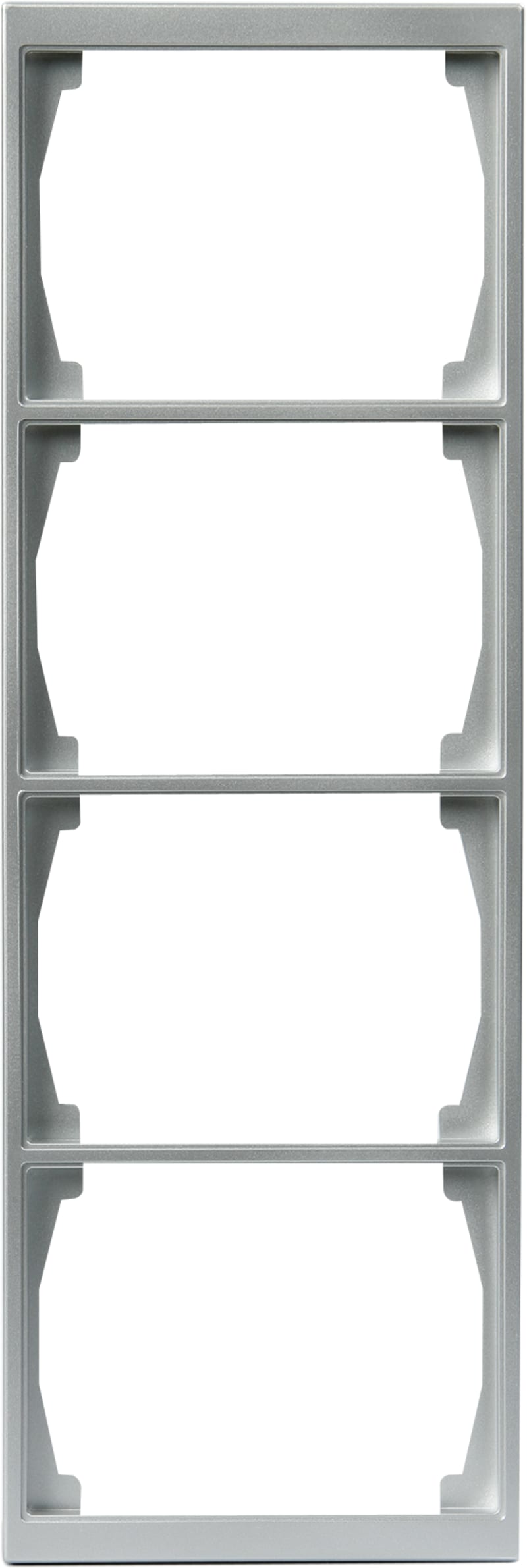

Impressivo Frame 4-Hole 100mm Aluminium
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1724F100-83 — Flush mounting cover plate for 2-gang cover plated accessories, such as double socket outlets. Also 1-gang accessories, such as switches, can be mounted with the adaptor 2519-xx. Suitable for both horizontal and vertical installation. The manufacture material is a durable high quality plastic. The surface is glossy and easy to keep clean. Cleaning with a mild, standard household detergent. Be careful when cleaning with a powerful dissolvent.
Technical Specifications
- Manufacturer part number (MPN)
- 1724F100-83
- EAN / GTIN
- 6418677328121
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Type of Fastening
- Clamp; Screw
- Mounting Orientation
- Horizontal; Vertical
- Degree of Protection
- IP21
- Environmental Information
- 9AKK107680A2951
- Design Range
- Impressivo
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- Label Space Provided
- Without Label Space
- RAL Number
- RAL 9006 - White Aluminium
- Color
- Aluminium
- Number of Gangs
- 4-gang
- Number of Modules
- Horizontal 0; Vertical 0
- Product Net Width
- 100 mm
- Product Net Height
- 12 mm
- Product Net Depth / Length
- 298 mm
- Dimension Diagram
- 9AKK108470A8029
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000007 - Cover frame for domestic switching devices
- Colour
- Aluminium
- Width
- 100 mm
- Halogen free
- Yes
- Height
- 12 mm
- Depth
- 298 mm
- Number of units
- 4
- With hinged lid
- No
- Surface protection
- Lacquered
- Built-in height
- 100 mm
- Built-in width
- 298 mm
- Label space/information surface
- No
- Material quality
- Thermoplastic
- Mounting direction
- Horizontal and vertical
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Suitable for wall duct
- No
- Suitable for built-in installation
- No
- Flush-mounted installation
- Yes
- Number of units horizontal
- 4
- Number of units vertical
- 4
- Diameter bore hole (opening)
- 74 mm
- With mounting grid
- No
- Number of switch inserts
- 4
- Anti-bacterial treatment
- No
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 6418677328121
- SAP 1000428630
- Code 8893361
Product Documentation
More from ABB
ABB
WALL-Mount Cabinet CA16V 300X950X160MM. IP44
2CPX052183R9999
ABB
ABB 2TKA00004035 Impressivo Recessed Thermostat with Display and Floor Sensor
ABB
ABB 1SDA104855R1 BASE FOR Adjustable Depth Rotary Handle WITH Padlock Device FOR C.BREAKER Fixed-PLUG-IN XT6
ABB
Backplate for Gemini size. 1
1SL0385A00
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMD R16, In=16 A, 3-Pole
1SDA067010R1
ABB
ABB SACE Tmax XT6S 800 Moulded-Case Circuit Breaker — TMA 630-6300, In=630 A, 3-Pole
1SDA107574R1
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LSI, In=160 A, 3-Pole
1SDA067071R1
ABB
SAGA FLEX Sensorlinse Multi
2CKA006800A3059
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
