Product Description

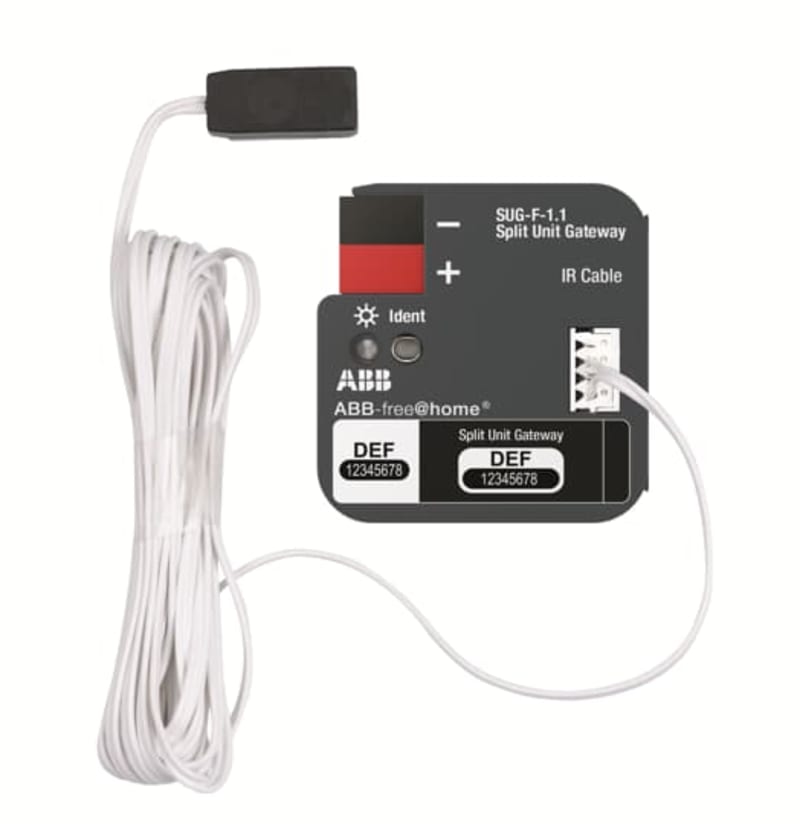

ABB SUG-F-1.1 — The device is used to interface between the free@home system and many manufacturers’ air conditioners, so-called split units. The device converts the free@home telegrams into infrared commands and transmits them to the split unit. The transmitter of the supplied cable is bonded directly onto the split unit’s receiver. The split unit then no longer receives the commands from a remote control. Instead, it can be operated via any free@home sensors. The model of the split unit can be selected during commissioning. Auxiliary voltage is not required.
Technical Specifications
- Manufacturer part number (MPN)
- SUG-F-1.1
- EAN / GTIN
- 4016779945578
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941205P0003
- Wiring Diagram
- 9AKK108469A7024
- Mounting Type
- Flush Mounted
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 9AKK107680A2816
- Communication Interface
- IR-interface
- Number of LEDs
- 1
- Compatible Bus Systems
- free@home (TP)
- Product Range
- free@home
- Software Updateable
- Yes
- Integrated Webserver
- No
- Manual Operation
- No
- Number of Batteries
- 0
- Voltage Range
- 10 ... 30 V DC
- Input Voltage (U in )
- 24 V DC
- Power Loss
- 0.4 W; Total 0 W
- Color
- grey
- Product Net Width
- 12 mm
- Product Net Height
- 39 mm
- Product Net Depth / Length
- 40 mm
- Dimension Diagram
- 2CDC072018F0016
- Declaration of Conformity - CE
- 2CDK508260D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0775
- EU Data Act Compliance Declaration
- 9AKK108471A4355
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001099 - System interface/media gateway for bus system
- eClass
- V11.0 : 27143136
- UNSPSC
- 43222605
- IDEA Granular Category Code (IGCC)
- 6809 >> System interface/media gateway for bus system
- Mounting method
- Flush-mounted
- Model
- IR-interface
- Operating voltage
- 30 V
- Bus system KNX
- No
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Other bus systems
- free@home
- Bus system LON
- No
- Demounting protection
- No
- Radio interface
- No
- IR interface
- Yes
- Provider dependent
- No
- Updateable
- Yes
- Visualization
- No
- Web-Server
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4016779945578
- SAP 1200458060
- Code 82532881
Product Documentation
More from ABB
ABB
Impressivo SENT.PL. LYD/Bilde/USB Aluminium
2CKA001710A3659
ABB

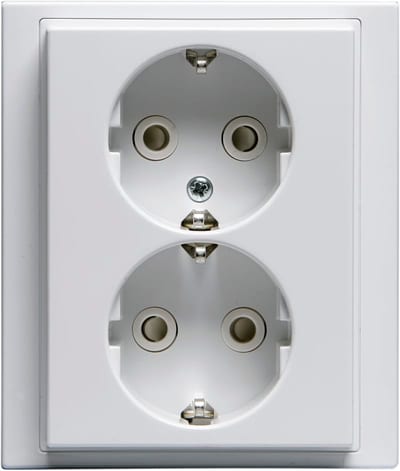

Impressivo In. DBL Socket White
302EUJ-84
ABB

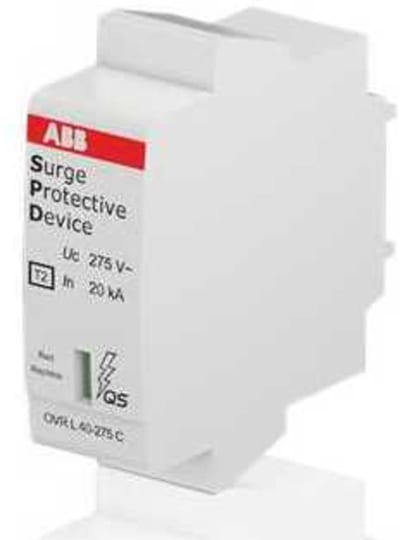

ABB 2CTB803876R1000 OVR T2 40-275 C QS Surge Protective Device
