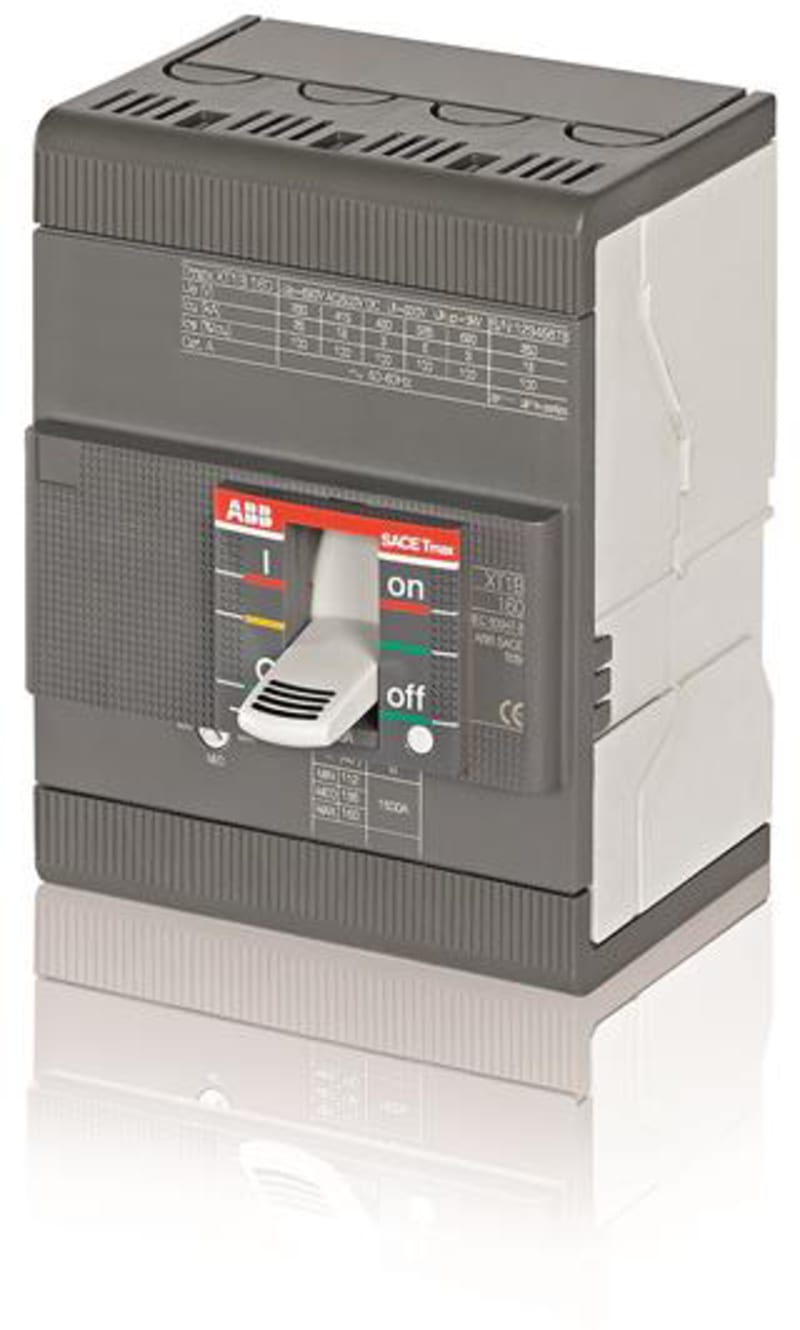

ABB SACE Tmax XT1C 160 Moulded-Case Circuit Breaker — TMD R40, In=40 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT1C 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 40 A, 4-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD R40 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class C; rated ultimate short-circuit breaking capacity Icu = 25 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA067402R1, EAN 8015644012960, ABB/SAP material 1000792093, catalogue code 81406073.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT1 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT1C 160 TMD R40 4p FF
- ABB order code (MPN)
- 1SDA067402R1
- EAN / GTIN
- 8015644012960
- ABB / SAP material no.
- 1000792093
- Frame
- XT1 (160 A frame)
- Breaking-capacity class
- C
- Rated ultimate breaking capacity Icu (415 V AC)
- 25 kA
- Trip unit
- TMD R40
- Rated uninterrupted current In
- 40 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644012960
- SAP 1000792093
- Code 81406073
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT5V 400 Moulded-Case Switch-Disconnector — 3-Pole
1SDA100566R1
ABB
DIN-RAIL ED3P30 35mm X 15mm L=744mm
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B32 A30MA
2CSR275180R1325
ABB

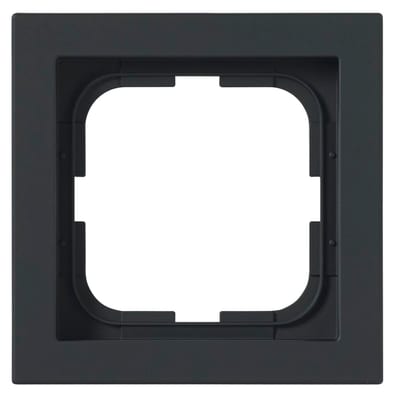

Impressivo Frame 1-Hole 85mm Black Matte
2TKA00004071
ABB

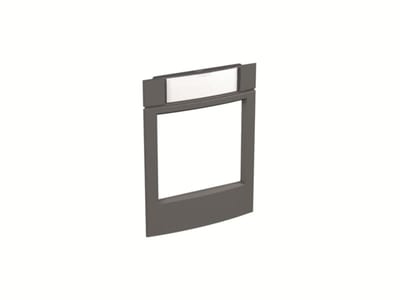

ABB 1SDA105137R1 FLA.xCOMP.DOORxMOE-RHD-FLD XT5 F/P
ABB

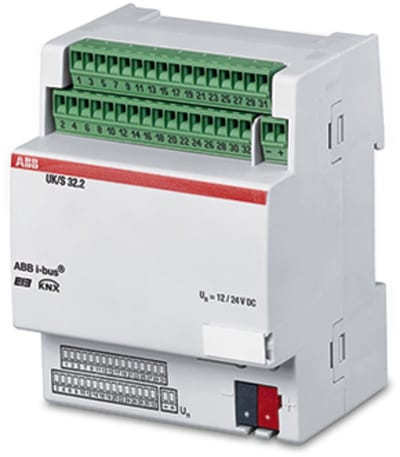

Universal 32 Channel In/O UK/S32.2
UK/S 32.2
ABB

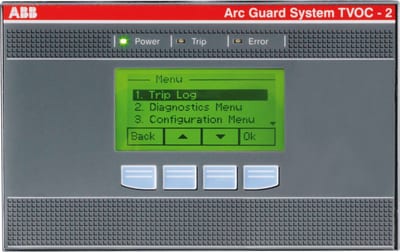

ABB TVOC-2-H1 Additional HMI for TVOC-2 Arc Guard System
ABB

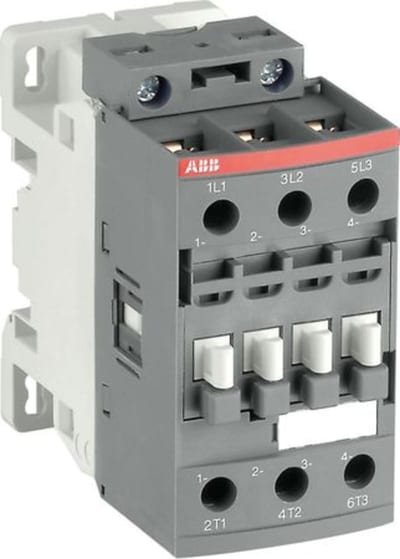

ABB AF-series contactor
