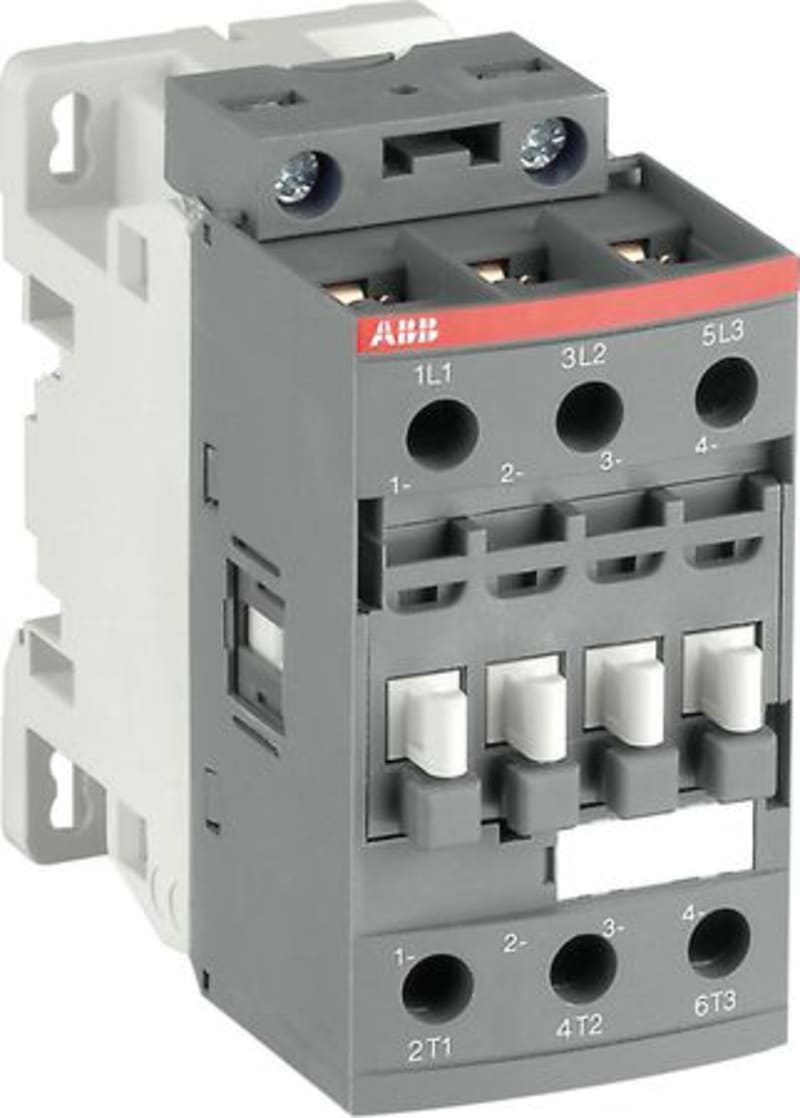

ABB AF-series contactor
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF30Z-30-00-20 12-20VDC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. CONTACTOR AF30Z-30-00-20 12-20VDC, coil consumption<500mA for PLS 90.
Technical Specifications
- Manufacturer part number (MPN)
- AF30Z-30-00-20 12-20VDC
- EAN / GTIN
- 3471523114401
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 21 pcs
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 86 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 15 kW
- Number of normally open contacts as main contact
- 3
- Rated operation current Ie at AC-3, 400 V
- 32 A
- Rated operation current Ie at AC-1, 400 V
- 50 A
- Rated control supply voltage AC 50 Hz
- 12–20 V
- Rated control supply voltage AC 60 Hz
- 12–20 V
- Rated control supply voltage DC
- 12–20 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation power NEMA
- 14.914 kW
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523114401
- SAP 1000225385
- Code 81133165
Product Documentation
More from ABB
ABB
MIR-P XT5 W/P 630A FP x MIR-H/V XT6
1SDA101990R1
ABB
ABB 2CDL801145R1013 Busbar for DSN201E, 1 phase, 10mm², 13 PINs, L form
ABB
KIT W MP XT4 4P (1SDA066287R1)
ABB
Meter 1F A42 312-100
2CMA170512R1000
ABB
ABB 1SDA104927R1 Shunt Opening Release FOR Permanent Service 380...440V AC XT5-XT6
ABB
ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — MA 160 Im=960, In=160 A, 3-Pole
1SDA068073R1
ABB
ABB GMA1SL0390A00 REAR Cover Gemini – SIZE 6;REAR Cover Gemini – SIZE 6
ABB
Impressivo 3-H KAP WITH RAM 54/80 Black Matte
2TKA00004459
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AF30Z-30-00-20 12-20VDC?
- AF30Z-30-00-20 12-20VDC can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is AF30Z-30-00-20 12-20VDC.
- What is the HS code for AF30Z-30-00-20 12-20VDC?
- The customs tariff (HS) code for AF30Z-30-00-20 12-20VDC is 8536.90.
- Who manufactures AF30Z-30-00-20 12-20VDC?
- AF30Z-30-00-20 12-20VDC is a ABB product in the Electrical Components range.
- Is a datasheet available for AF30Z-30-00-20 12-20VDC?
- Yes — the AF30Z-30-00-20 12-20VDC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AF30Z-30-00-20 12-20VDC?
- The minimum order quantity is 1.
- Is AF30Z-30-00-20 12-20VDC available?
- Yes — AF30Z-30-00-20 12-20VDC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
