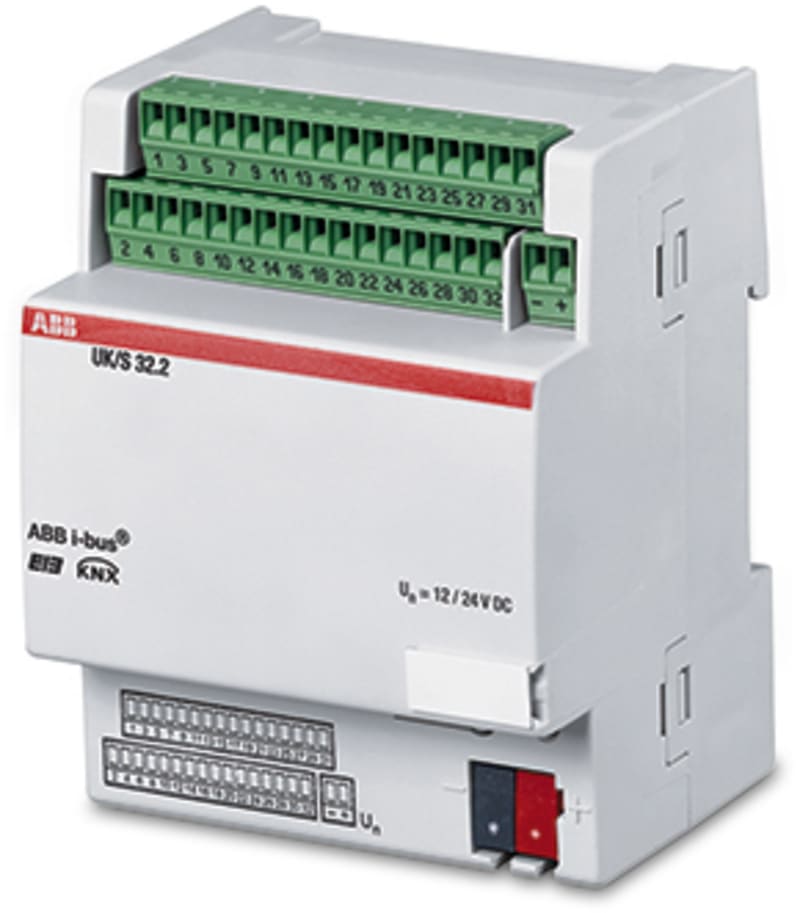

Universal 32 Channel In/O UK/S32.2
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB UK/S 32.2 — To connect push buttons or signal lamps to the ABB i-bus®, e.g., in an operating/display tableau. It has 32 channels which can be freely parameterised as inputs/outputs using the ETS software. Requires an external 12/24 V DC auxiliary power supply.
Technical Specifications
- Manufacturer part number (MPN)
- UK/S 32.2
- EAN / GTIN
- 4016779655774
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941038P0002
- Wiring Diagram
- 9AKK108469A6734
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC510067D0201
- Special Functions
- Switching
- Sub-Function
- LED controlling
- Number of LEDs
- 1
- Maximum Number of Switching Outputs
- 32
- Number of Input Channels
- 32
- Number of Output Channels
- 32
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- No
- Suitable for C-Load
- No
- Number of Batteries
- 0
- Current Type
- DC
- Rated Operational Voltage
- 10 ... 30 V DC
- Auxiliary Voltage AC/DC
- 10 ... 30 V DC
- Input Voltage (U in )
- 12 ... 24 V DC
- Input Voltage Type
- DC
- Output Voltage (U out )
- 12 V DC; 24 V DC
- Maximum Switching Current
- 0.08 A
- Maximum Switching Power
- 2 W
- Power Loss
- 2.5 W; Total 3 W
- Color
- light grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 72 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAC189203_EPLAN
- Declaration of Conformity - CE
- 2CDK510081D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0780
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0117
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001584 - I/O device for bus system
- eClass
- V11.0 : 27143145
- UNSPSC
- 39122221
- Object Classification Code
- A
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Remote operation possible
- Yes
- Ethernet
- No
- Mounting method
- DRA (DIN-rail adaptor)
- With bus connection
- Yes
- LED controlling
- Yes
- With LED indication
- No
- Local operation/hand operation
- No
- Number of switch inputs
- 32
- Number of inputs
- 32
- Max. switching current
- 0.08 A
- Switching current (resistive)
- 0.08 A
- Max. switching power
- 2 VA
- Max. number of switching contacts
- 32
- Output power
- 1.92 VA
- With switch function
- Yes
- Rated current
- 0.08 A
- Rated operating voltage
- 12–24 V
- External signal voltage necessary
- No
- Different phases connectable
- No
- Type of current
- DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779655774
- SAP 1000191682
- Code 8869320
