ABB TVOC-2-H1 Additional HMI for TVOC-2 Arc Guard System
Pricing
Request a quote
We reply within 24 hours
Product Description

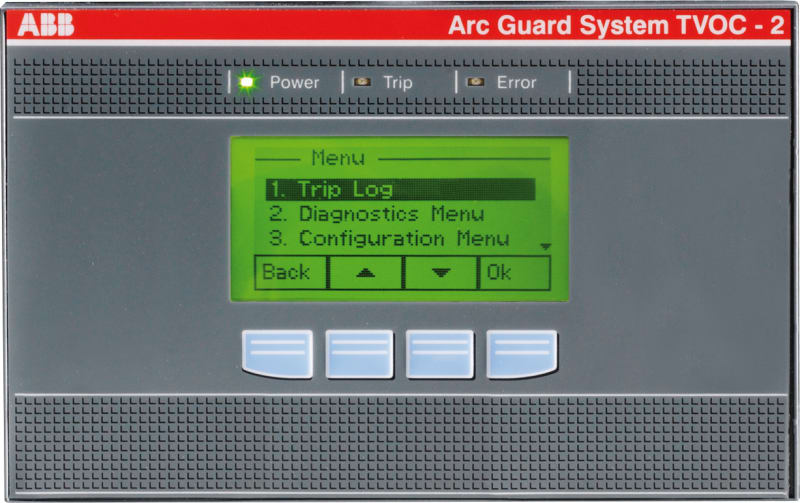

ABB TVOC-2-H1 — The TVOC-2-H1 is an HMI to be added to the TVOC-2 Arc Guard System Main unit if more than one HMI is needed. The added HMI can be added to the panel door for easier overview. The HMI is connected to the main unit by a 3 m cable with RJ45 connector that comes with the HMI unit. Accessories that comes with the unit are mounting nut, gasket and blank front label.
Technical Specifications
- Manufacturer part number (MPN)
- TVOC-2-H1
- EAN / GTIN
- 7320500382189
- Sales unit
- pcs
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Environmental Product Declaration - EPD
- No certification needed
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -25 ... +55 °C
- Environmental Information
- 1SFC170003D0201
- Product Net Width
- 130 mm
- Product Net Height
- 82 mm
- Product Net Depth / Length
- 27 mm
- Additional Information
- ARC MONITOR TVOC-2 HMI
- Product Main Type
- TVOC-2
- Suitable For
- TVOC-2
- Mounting Type
- Mounted on main unit or cabinet door
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 0
- Power Loss
- 0.150 W
- Terminal Type
- Screw Terminals
- BV Certificate
- 39407_B1
- CSA Certificate
- UL_20110511-E155370
- cULus Certificate
- UL_20110511-E155370
- Data Sheet, Technical Information
- 1SFC170001C0201
- Declaration of Conformity - CE
- 2CMT005420
- DNV Certificate
- DNV_E-12926
- EAC Certificate
- 9AKK106713A1450
- UL Certificate
- UL_20110511-E155370
- Instructions and Manuals
- 1SFC170011M0201
- Instructions and Manuals (Part 2)
- 1SFC170011M0201
- ETIM 9
- EC002911 - Arc detection and mitigation system
- IDEA Granular Category Code (IGCC)
- 3594 >> Interface module
- Object Classification Code
- B
- UNSPSC
- 32151802
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.0 : 27142214
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7320500382189
- SAP 1000407859
- Code 8921232
Product Documentation
More from ABB
ABB
ABB AF-series contactor
AF30Z-30-00-20 12-20VDC
ABB
MIR-P XT5 W/P 630A FP x MIR-H/V XT6
1SDA101990R1
ABB
ABB 2CDL801145R1013 Busbar for DSN201E, 1 phase, 10mm², 13 PINs, L form
ABB
KIT W MP XT4 4P (1SDA066287R1)
ABB
Meter 1F A42 312-100
2CMA170512R1000
ABB
ABB 1SDA104927R1 Shunt Opening Release FOR Permanent Service 380...440V AC XT5-XT6
ABB
ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — MA 160 Im=960, In=160 A, 3-Pole
1SDA068073R1
ABB
ABB GMA1SL0390A00 REAR Cover Gemini – SIZE 6;REAR Cover Gemini – SIZE 6
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TVOC-2-H1?
- TVOC-2-H1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is TVOC-2-H1.
- What is the HS code for TVOC-2-H1?
- The customs tariff (HS) code for TVOC-2-H1 is 8538.90.
- Who manufactures TVOC-2-H1?
- TVOC-2-H1 is a ABB product in the Control & Automation range.
- Is a datasheet available for TVOC-2-H1?
- Yes — the TVOC-2-H1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TVOC-2-H1?
- The minimum order quantity is 1.
- Is TVOC-2-H1 available?
- Yes — TVOC-2-H1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
