Contactor AF305-30-11-13 (AF305-30-11-13 100-250V 50/60Hz / Dc)
Pricing
Request a quote
We reply within 24 hours
Product Description

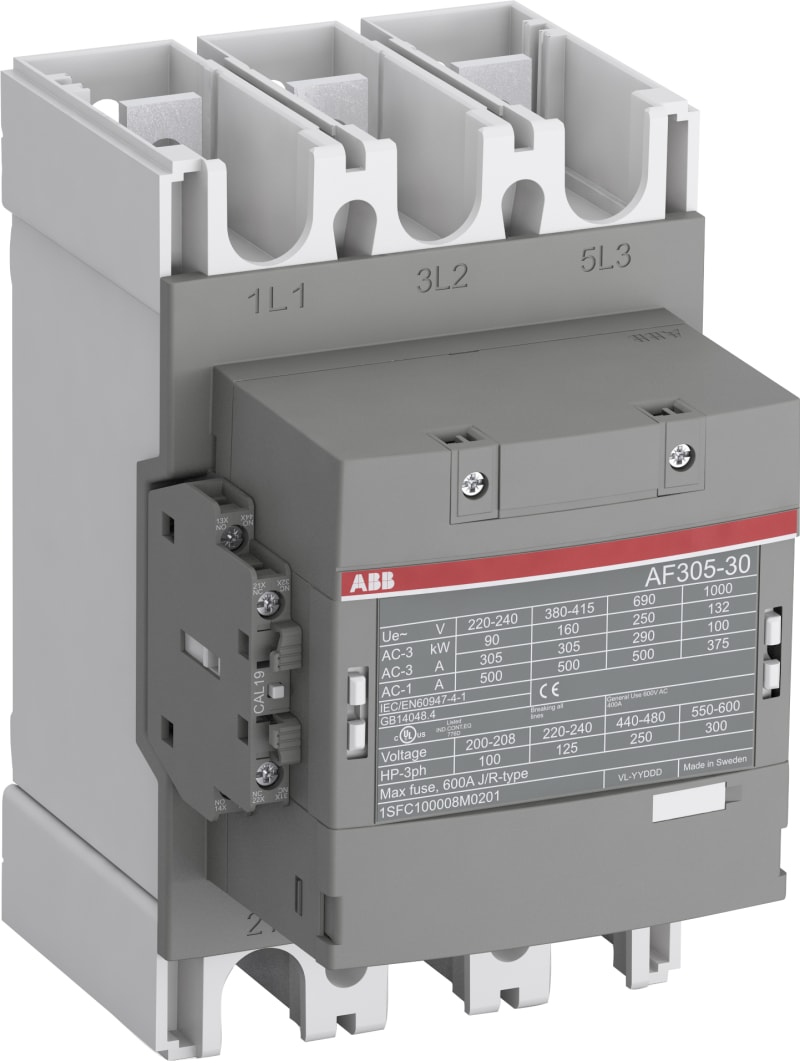

ABB AF305-30-11-13 100-250V 50/60Hz / DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. AF305-30-11-13 100-250V 50/60Hz/DC - Contactor with rail connection. With 1NO+1NC hj.connector.
Technical Specifications
- Manufacturer part number (MPN)
- AF305-30-11-13 100-250V 50/60Hz / DC
- EAN / GTIN
- 7320500481776
- HS code
- 8536.90
- Sales unit
- pcs
- Frequency
- 50/60 Hz
- Width
- 140 mm
- Height
- 225 mm
- Depth
- 180 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 160 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 305 A
- Rated operation current Ie at AC-1, 400 V
- 500 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 93.2125 kW
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500481776
- SAP 1000598893
- Code 8396557
Product Documentation
More from ABB
ABB
ABB 404EA-84 Impressivo Socket Outlet, 4-Way with Earth, Surface-Mounted, White
ABB
ABB 2CDL800001R2514 Accessories for BR busbars for RCBO DS202CR, Feed-in terminal (PIN connection clamp)
ABB
Residual Current Circuit Breaker F204 B 40A/300MA
2CSF204568R3400
ABB
Impressivo DAB+, BT Radio SET HV
2CKA008200A0237
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C16 A100MA
2CSR275180R2164
ABB
Impressivo In. DBL Socket Aluminium
2TKA00000442
ABB
ATS-16A PowerValue (4NWP104041R0001)
ABB
ABB 1SEP620150R3000 ZLBM00-100-3P-M8 Fuse switch disconnector
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AF305-30-11-13 100-250V 50/60Hz / DC?
- AF305-30-11-13 100-250V 50/60Hz / DC can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is AF305-30-11-13 100-250V 50/60Hz / DC.
- What is the HS code for AF305-30-11-13 100-250V 50/60Hz / DC?
- The customs tariff (HS) code for AF305-30-11-13 100-250V 50/60Hz / DC is 8536.90.
- Who manufactures AF305-30-11-13 100-250V 50/60Hz / DC?
- AF305-30-11-13 100-250V 50/60Hz / DC is a ABB product in the Electrical Components range.
- Is a datasheet available for AF305-30-11-13 100-250V 50/60Hz / DC?
- Yes — the AF305-30-11-13 100-250V 50/60Hz / DC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AF305-30-11-13 100-250V 50/60Hz / DC?
- The minimum order quantity is 1.
- Is AF305-30-11-13 100-250V 50/60Hz / DC available?
- Yes — AF305-30-11-13 100-250V 50/60Hz / DC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
