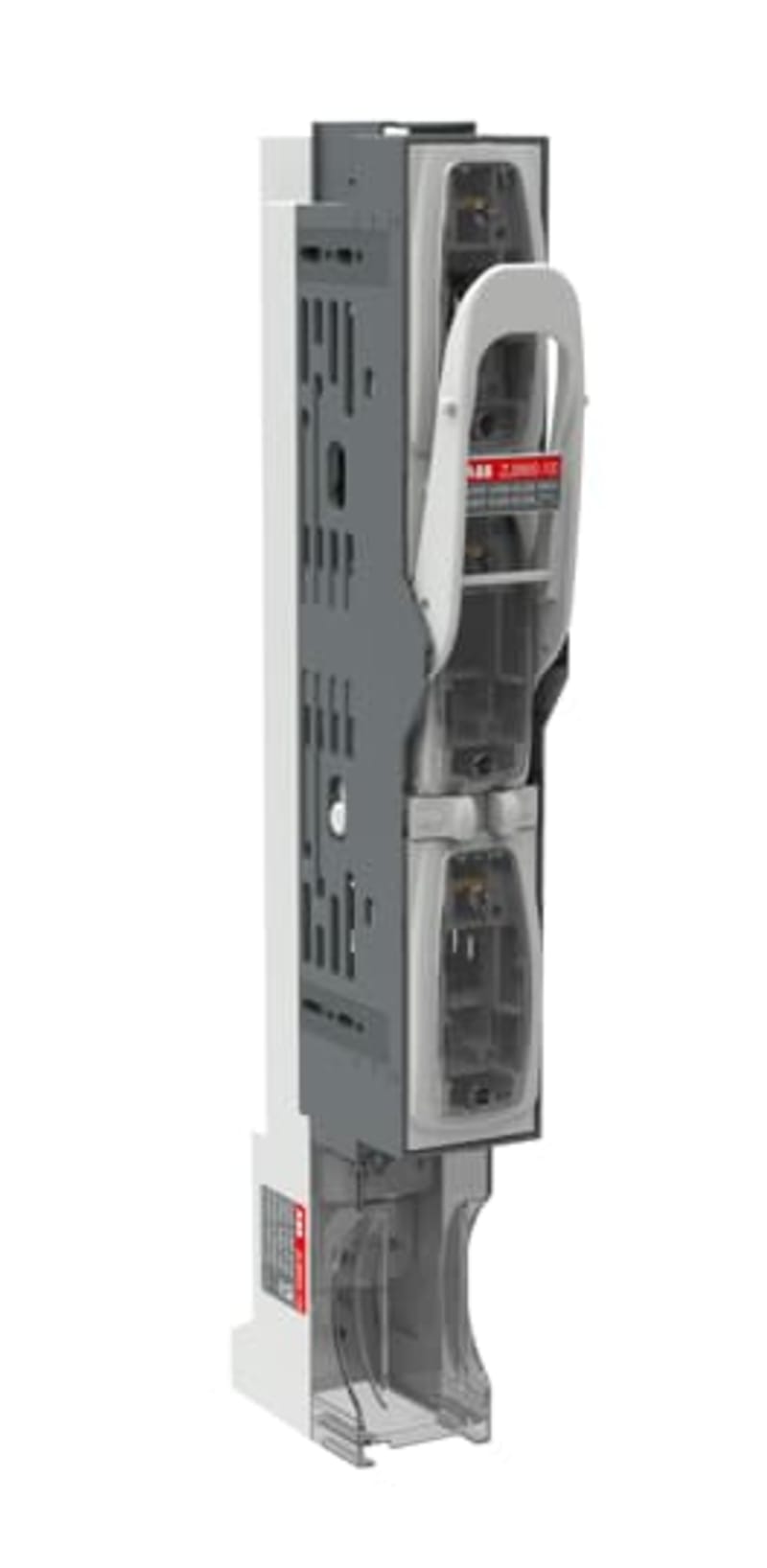

ABB 1SEP620150R3000 ZLBM00-100-3P-M8 Fuse switch disconnector
ABB

ABB 1SEP620150R3000 ZLBM00-100-3P-M8 Fuse switch disconnector

Part number1SEP620150R3000EAN / GTIN7025840090519HS code8538.90
Switchgear & Protection
Disconnect Switches
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Overview

ABB 1SEP620150R3000 ZLBM00-100-3P-M8 Fuse switch disconnector is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Degree of Protection: Front IP30; Product Frame Size: Low; Product Net Width: 49 mm; Product Net Height: 409 mm; Product Net Depth / Length: 124 mm.

Technical Specifications

Manufacturer part number (MPN)
1SEP620150R3000
EAN / GTIN
7025840090519
Sales unit
pcs
Number of poles
3
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
9AKK108470A6420
Environmental Product Declaration - EPD
9AKK108469A0964
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 94.30 %
Degree of Protection
Front IP30
Product Frame Size
Low
Product Net Width
49 mm
Product Net Height
409 mm
Product Net Depth / Length
124 mm
Device Type Manager (DTM)
Fuseswitchdisconnector
Distance Between Phases
100 mm
Electronic Fuse Monitoring
No
Fuse Size
NH00
Fuse System
DIN
Handle Type
3P Device
Power Loss
at Rated Load 33.6 W
Rated Current (I n )
Main Circuit 160 A
Rated Impulse Withstand Voltage (U imp )
Main Circuit 8 kV
Rated Insulation Voltage (U i )
1000 V
Rated Operational Current AC-20B
(690 V) 125 A; (500 V) 160 A; (800 V) 63 A
Rated Operational Current AC-21B (I e )
(690 V) 125 A; (500 V) 160 A; (800 V) 63 A
Rated Operational Current AC-22B (I e )
(500 V) 160 A; (690 V) 125 A; (800 V) 125 A
Rated Operational Current AC-23B (I e )
(500 V) 160 A
Rated Operational Voltage
Main Circuit 800 V AC
Standards
IEC60947-3
Terminal Type
Bolt
Tightening Torque
10 N·m
Declaration of Conformity - CE
1SEP500046P0001
Object Classification Code
Q
ETIM 9
EC001040 - Fuse switch disconnector
eClass
V11.1 : 27371401
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)
1687854

Standards & Compliance

HS Code
8538.90

Cross References

  • EAN 7025840090519
  • SAP 1200924005
  • Code 84210927

Product Documentation

Document preview: ABB 1SEP620150R3000 — OEM Product Page

Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
