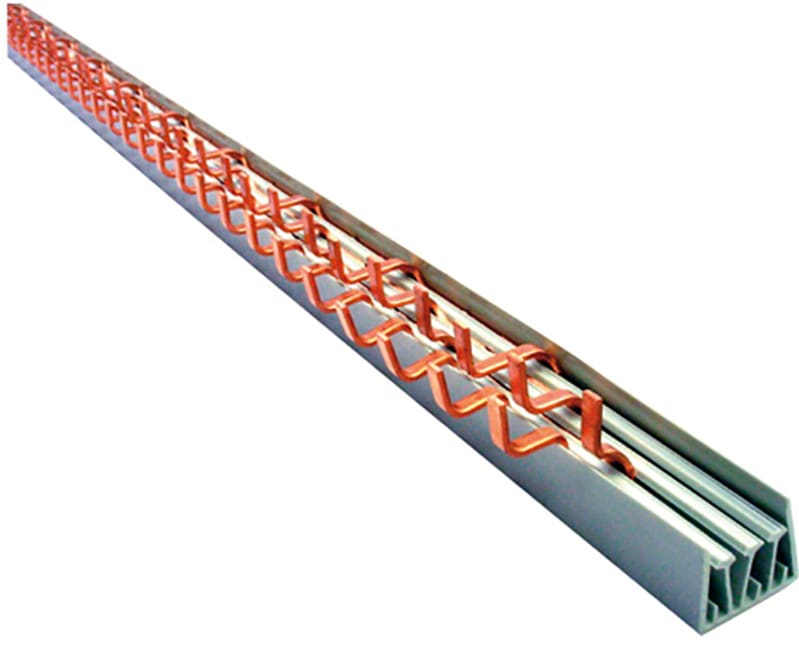

ABB 2CDL804141R1055 Busbar for DSN201E, 4 phases, 10mm², 110 PINs
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CDL804141R1055 Busbar for DSN201E, 4 phases, 10mm², 110 PINs is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 5 pcs; Suitable For: DSN201E; Pitch: 18.0; Connection Type: Pin; Rated Cross-Section: 10 mm².
Technical Specifications
- Manufacturer part number (MPN)
- 2CDL804141R1055
- EAN / GTIN
- 4053546046786
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Suitable For
- DSN201E
- Pitch
- 18.0
- Number of Poles
- 56P
- Number of Phases
- 4-phase
- Number of Mountable Devices
- 55
- Connection Type
- Pin
- Number of Batteries
- 0
- Rated Cross-Section
- 10 mm²
- Rated Operational Voltage
- 400 V; Maximum 400 V
- Voltage Protection Level ( Up)
- 4
- Rated Short-time Withstand Current Low Voltage (I cw )
- 25 kA
- Rated Uninterrupted Current (I u )
- 63 A
- Width in Number of Modular Spacings
- 55
- Product Net Width
- 0.05 m
- Product Net Height
- 0.07 m
- Product Net Depth / Length
- 1.016 m
- Declaration of Conformity - CE
- 9AKK107680A9763
- Declaration of Conformity - UKCA
- 9AKK108469A0850
- ETIM 9
- EC000215 - Phase busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27371306
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Object Classification Code
- W
- Insulated
- Yes
- Cross section
- 10 mm²
- Rated permanent current Iu
- 63 A
- Length
- 1016 mm
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 55
- Max. rated operation voltage Ue
- 400 V
- Module width
- 18 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4053546046786
- SAP 1200611352
- Code 83032893
Product Documentation
More from ABB
ABB
JF.AUT.DS203NC B6 A30 230V
2CSR256147R1065
ABB
ABB SACE Tmax XT1N 160 Moulded-Case Circuit Breaker — TMD 125-1250, In=125 A, 3-Pole
1SDA067417R1
ABB
SAGA WALL-Mounted Socket Double IP44
402ESW-916
ABB
SIKKH.BR. R/G vred OTP16A3M
ABB
SAGA Signal Transformer FLM1000 15V/AC 2.2VA
2TKA00004972
ABB

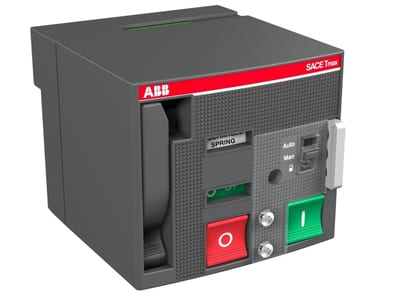

MOE XT2-XT4 220...250 V ac/dc
MOE XT2-XT4 220...250V ac/dc
ABB

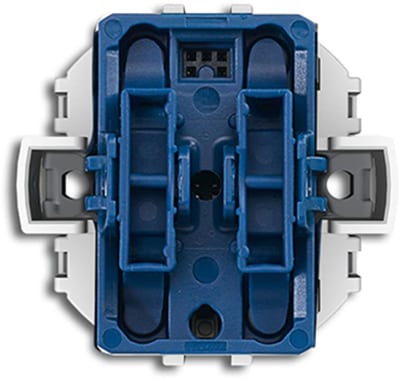

Switch Insert 1/2V 6108/06-AP-500
2CKA006133A0225
ABB

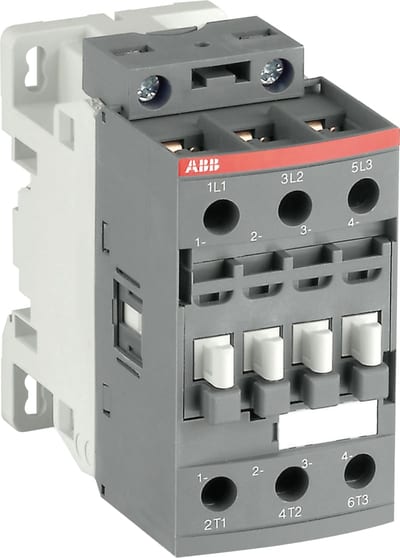

AF26-30-00-11 60VAC 20-60VDC
