ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C16 A100MA
Part number2CSR275180R2164EAN / GTIN8012542583516HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR275180R2164 DS201 M C16 A100, 10kA, 2mod, C kar, 16A, 1 pole+N, 100mA.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR275180R2164
- EAN / GTIN
- 8012542583516
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power loss
- 4.5 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 16 A
- Rated fault current
- 0.1 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Voltage type
- AC
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 0.75–16 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542583516
- SAP 1200385270
- Code 82434835
Product Documentation
Document preview: ABB 2CSR275180R2164 — OEM Product Page
More from ABB
ABB
Impressivo In. DBL Socket Aluminium
2TKA00000442
ABB
ATS-16A PowerValue (4NWP104041R0001)
ABB
ABB 1SEP620150R3000 ZLBM00-100-3P-M8 Fuse switch disconnector
ABB
AF30-30-00-11 60VAC 20-60VDC
AF30-30-00-11 24-60V50/60HZ 20-60VDC
ABB

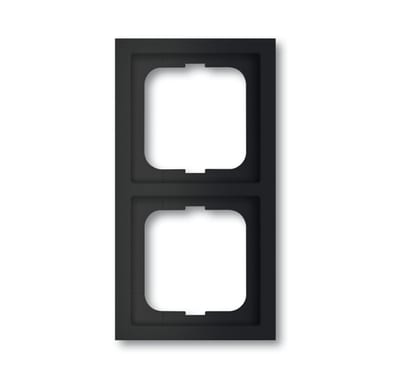

Frame 2-Hole, 80mm, black matt
1722-885K-500
ABB

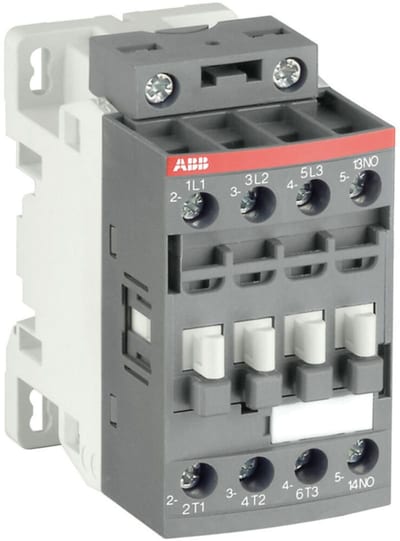

AF09-30-01-13 100-250V AC/DC
AF09-30-01-13 100-250V50/60HZ-DC
ABB

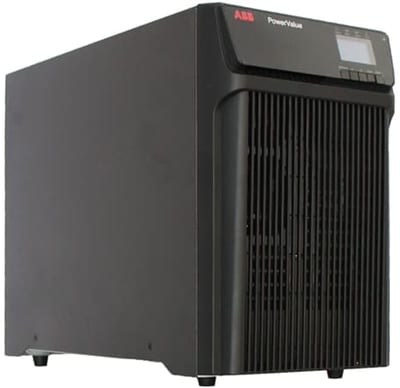

ABB VFI online double conversion;6000W;6MIN;RS232;USB;COM slot 4NWP100163R0001
ABB

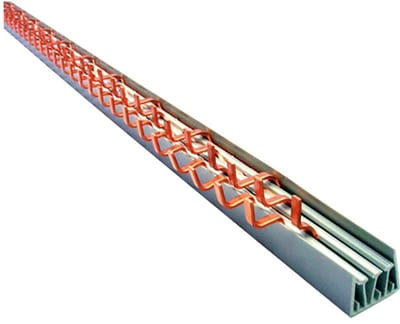

ABB 2CDL804141R1055 Busbar for DSN201E, 4 phases, 10mm², 110 PINs
